Описание

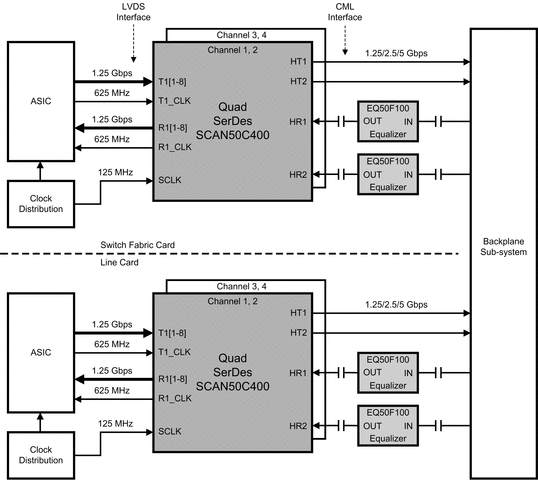

The EQ50F100 is a equalizer designed to compensate transmission medium losses and reduce the medium-induced deterministic jitter. It is optimized for operation from 1Gbps to 6.25Gbps, on printed circuit backplane for up to 30" of FR4 striplines with backplane connectors at both ends. It is code independent, and functioning equally well for short run length, balanced codes such as 8b/10b, commonly used in multiplexed 1.25 Gbps Ethernet Systems. The equalizer uses differential CML inputs and outputs with feed-through pin-outs, mounted in a 3 mm x 3 mm 6-pin leadless LLP package. It is powered from single 1.8V supply and consumes 85 mW.

Recovers 6.25 Gbps signals after 30" of FR4
Single 1.8V power supply
Low power consumption: 85mW
Equalize up to 20dB loss at 2.5 GHz
35 ps residual deterministic jitter at 5 Gbps
On-chip CML terminations
Small 3 mm x 3 mm 6-pin leadless LLP package

Function	Equalizer
Protocols	CML
Number of transmitters	1
Number of receivers	1
Supply voltage (V)	1.8
Signaling rate (MBits)	6250
Input signal	CML
Output signal	CML
Rating	Catalog
Operating temperature range (°C)	-40 to 85
