DS90LV019-MIL Texas instruments

DS90LV019-MIL

Уточнить цену

DS90LV019-MIL

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

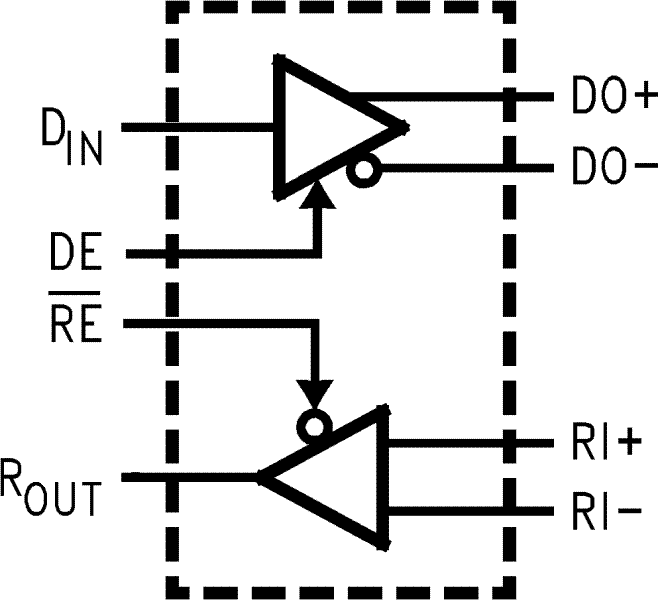

The DS90LV019 is a Driver/Receiver designed specifically for the high speed low power point-to-point interconnect applications. The device operates from a single 3.3V or 5.0V power supply and includes one differential line driver and one receiver. The DS90LV019 features an independent driver and receiver with TTL/CMOS compatibility (DIN and ROUT). The logic interface provides maximum flexibility as 4 separate lines are provided (DIN, DE, RE#, and ROUT). The device also features a flow-through pin out which allows easy PCB routing for short stubs between its pins and the connector. The driver has 3.5 mA output loop current. The driver translates between TTL levels (single-ended) to Low Voltage Differential Signaling levels. This allows for high speed operation, while consuming minimal power with reduced EMI. In addition, the differential signaling provides common-mode noise rejection. The receiver threshold is ±100 mV over a ±1V common-mode range and translates the low swing differential levels to standard (TTL/CMOS) levels.

LVDS Signaling
3.3V or 5.0V operation
Low power CMOS design
Balanced Output Impedance
Glitch free power up/down (Driver disabled)
High Signaling Rate Capacity (above 100 Mbps)
Ultra Low Power Dissipation
±1V Common-Mode Range
±100 mV Receiver Sensitivity
Product offered in SOIC and TSSOP packages
Flow-Through Pin Out
Industrial Temperature Range Operation

TRI-STATE® is a registered trademark of National Semiconductor Corporation.

Function	Transceiver
Protocols	LVDS
Number of transmitters	1
Number of receivers	1
Supply voltage (V)	3.3, 5
Signaling rate (MBits)	100
Input signal	LVDS, LVTTL, TTL
Output signal	LVDS, LVTTL, TTL
Rating	Military
Operating temperature range (°C)	-40 to 85
