Описание

The UCC27517A-Q1 single-channel high-speed low-side gate-driver device effectively drives MOSFET and IGBT power switches. With a design that inherently minimizes shoot-through current, the UCC27517A-Q1 sources and sinks high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay typically 13 ns. The UCC27517A-Q1 device handles –5 V at input. The UCC27517A-Q1 provides 4-A source and 4-A sink (symmetrical drive) peak-drive current capability at VDD = 12 V. The UCC27517A-Q1 operates over a wide VDD range of 4.5 V to 18 V and wide temperature range of –40°C to 140°C. Internal Undervoltage Lockout (UVLO) circuitry on VDD pin holds the output low outside VDD operating range. The ability to operate at low voltage levels such as below 5 V, along with best-in-class switching characteristics, is especially suited for driving emerging wide band-gap power-switching devices such as GaN power-semiconductor devices.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Automotive Qualified Grade 1: –40°C
  to 125°C Ambient Operating Temperature
  Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C6
Low-Cost Gate-Driver Device Offering Superior
Replacement of NPN and PNP Discrete Solutions
4-A Peak-Source and Sink Symmetrical Drive
Ability to Handle Negative Voltages (–5 V) at
Inputs
Fast Propagation Delays (13-ns typical)
Fast Rise and Fall Times (9-ns and 7-ns typical)
4.5 to 18-V Single-Supply Range
Outputs Held Low During V_DD UVLO (ensures
glitch-free operation at power up and power down)
TTL and CMOS Compatible Input-Logic Threshold
(independent of supply voltage)
Hysteretic-Logic Thresholds for High-Noise
Immunity

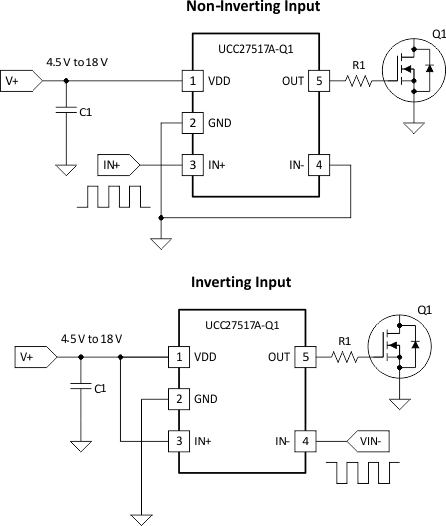

Dual Input Design (choice of an inverting (IN– pin)
or non-inverting (IN+ pin) driver configuration)
- Unused Input Pin can be Used for Enable or
  Disable Function
Output Held Low when Input Pins are Floating
Input Pin Absolute Maximum Voltage Levels Not
Restricted by V_DD Pin Bias Supply Voltage
Operating Temperature Range of –40°C to 140°C
5-Pin DBV (SOT-23) Package Option

Number of channels	1
Power switch	GaNFET, IGBT, MOSFET
Peak output current (A)	4
Input VCC (min) (V)	4.5
Input VCC (max) (V)	18
Features	Hysteretic Logic
Operating temperature range (°C)	-40 to 125
Rise time (ns)	9
Fall time (ns)	7
Propagation delay time (µs)	0.013
Input threshold	CMOS, TTL
Channel input logic	Inverting, Non-Inverting
Input negative voltage (V)	-5
Rating	Automotive
Undervoltage lockout (typ) (V)	4
Driver configuration	Inverting, Non-Inverting
