Описание

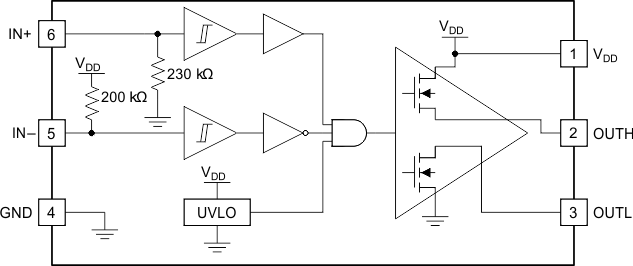

The UCC27511A-Q1 device is a compact gate driver that offers superior replacement of NPN and PNP discrete driver (buffer circuit) solutions. The UCC27511A-Q1 device is an automotive-grade single-channel low-side, high-speed gate driver rated for MOSFETs, IGBTs, and emerging wide-bandgap power devices such as GaN. The device features fast rise times, fall times, and propagation delays, making the UCD27511A-Q1 device suitable for high-speed applications. The device features 4-A peak source and 8-A peak sink currents with asymmetrical drive, boosting immunity against parasitic Miller turnon effect. The split output configuration enables easy and independent adjustment of rise and fall times using only two resistors and eliminating the need for an external diode.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to 125°C
  Ambient Operating Temperature Range
- Device HBM ESD Classification Level 2
- Device CDM ESD Classification Level C4B
Low-Cost Gate-Driver Device Offering Superior
Replacement of NPN and PNP Discrete Solutions
4-A Peak Source and 8-A Peak Sink Asymmetrical Drive
Strong Sink Current Offers Enhanced Immunity Against
Miller Turnon
Split Output Configuration (Allows Easy and Independent
Adjustment of Turnon and Turnoff Speeds) in the
UCC27511A-Q1
Fast Propagation Delays (13-ns typical)
Fast Rise and Fall Times (9-ns and 7-ns typical)
4.5 to 18-V Single Supply Range
Outputs Held Low During V_DD UVLO (Ensures
Glitch-Free Operation at Power Up and Power Down)
TTL and CMOS Compatible Input-Logic Threshold
(Independent of Supply Voltage)
Hysteretic-Logic Thresholds for High-Noise Immunity
Dual-Input Design (Choice of an Inverting (IN– Pin)
or Non-Inverting (IN+ Pin) Driver Configuration)
- Unused Input Pin can be Used for Enable or
  Disable Function
Output Held Low when Input Pins are Floating
Input Pin Absolute Maximum Voltage Levels Not
Restricted by V_DD Pin Bias Supply Voltage
Input Pins Capable of Withstanding –5-V DC Below
GND pin
Operating Temperature Range of –40°C to 140°C
6-Pin DBV (SOT-23) Package Option

Number of channels	1
Power switch	GaNFET, IGBT, MOSFET
Peak output current (A)	8
Input VCC (min) (V)	4.5
Input VCC (max) (V)	18
Features	Split Output
Operating temperature range (°C)	-40 to 125
Rise time (ns)	9
Fall time (ns)	7
Propagation delay time (µs)	0.013
Input threshold	CMOS, TTL
Channel input logic	Inverting, Non-Inverting
Input negative voltage (V)	-5
Rating	Automotive
Undervoltage lockout (typ) (V)	4
Driver configuration	Inverting, Non-Inverting
