Описание

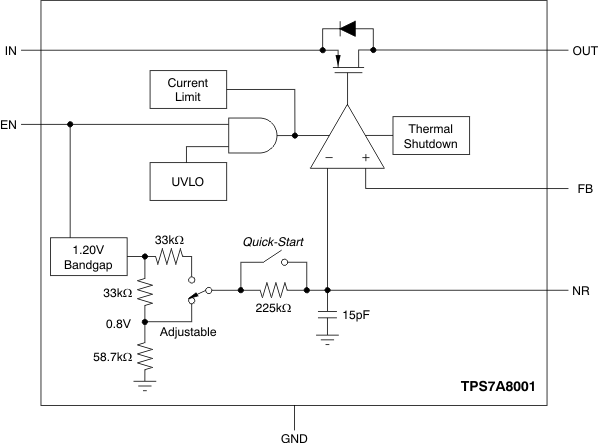

The TPS7A80 family of low-dropout linear regulators (LDOs) offer very high power-supply ripple rejection (PSRR) at the output. This LDO family uses an advanced BiCMOS process and a PMOSFET pass device to achieve very low noise, excellent transient response, and excellent PSRR performance.The TPS7A80 family is stable with a 4.7-µF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations.This family is fully specified over the temperature range of TJ = –40°C to +125°C, and is offered in a 3-mm × 3-mm, VSON-8 package with a thermal pad.

Low-Dropout 1-A Regulator With Enable
Adjustable Output Voltages: 0.8 V to 6 V
Fixed Output Voltages: 0.8 V to 6 V
Wide-Bandwidth High PSRR:
- 63 dB at 1 kHz
- 57 dB at 100 kHz
- 38 dB at 1 MHz
Low Noise: (14 × V_OUT ) µV_RMS Typical (100 Hz to 100 kHz)
Stable with a 4.7-µF Ceramic Capacitor
Excellent Load/Line Transient Response
3% Overall Accuracy (Over Load/Line/Temp)
Overcurrent and Overtemperature Protection
Very Low Dropout: 170 mV Typical at 1 A
3-mm × 3-mm VSON-8 DRB Package

Output options	Adjustable Output, Fixed Output
Iout (max) (A)	1
Vin (max) (V)	6.5
Vin (min) (V)	2.2
Vout (max) (V)	6
Vout (min) (V)	0.8
Fixed output options (V)	1.2, 1.8, 3.3, 5
Noise (µVrms)	50
Iq (typ) (mA)	0.06
Thermal resistance θJA (°C/W)	48
Rating	Catalog
Load capacitance (min) (µF)	4.7
Regulated outputs (#)	1
Features	Enable
Accuracy (%)	3
PSRR at 100 KHz (dB)	57
Dropout voltage (Vdo) (typ) (mV)	170
Operating temperature range (°C)	-40 to 125
