Описание

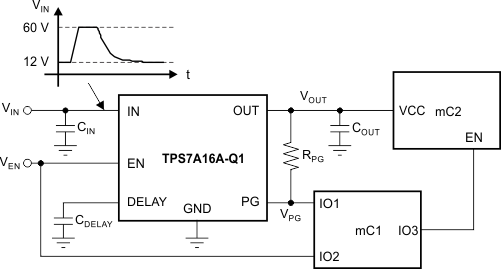

The TPS7A16A-Q1 ultralow-power, low-dropout (LDO) voltage regulator offers the benefits of ultralow quiescent current, high input voltage, and miniaturized, high-thermal-performance packaging.The TPS7A16A-Q1 is designed for continuous or sporadic (power backup) battery-powered applications where ultralow quiescent current is critical to extending system battery life.The TPS7A16A-Q1 offers an enable pin (EN) compatible with standard complementary metal oxide semiconductor (CMOS) logic and an integrated open-drain, active-high, power-good output (PG) with a user-programmable delay. These pins are intended for use in microcontroller-based, battery-powered applications where power-rail sequencing is required.In addition, the TPS7A16A-Q1 is ideal for generating a low-voltage supply from multicell solutions ranging from high-cell-count power-tool packs to automotive applications; not only can this device supply a well-regulated voltage rail, but the TPS7A16A-Q1 can also withstand and maintain regulation during voltage transients. These features translate to simpler and more cost-effective, electrical surge-protection circuitry.

Qualified for automotive applications
AEC-Q100 qualified with the following results:
- Device temperature grade 1: –40°C to 125°C ambient operating temperature range
- Device HBM ESD classification level 2
- Device CDM ESD classification level C3B
Wide input voltage range: 3 V to 60 V
Ultralow quiescent current: 5 µA
Quiescent current at shutdown: 1 µA
Output current: 100 mA
Low dropout voltage: 60 mV at 20 mA
Accuracy: 2%
Available in:
- Fixed output voltage: 3.3 V, 5 V
- Adjustable version from approximately 1.2 to 18.5 V
Power-good with programable delay
Current-limit and thermal shutdown protections
Stable with ceramic output capacitors:
≥ 2.2 µF
Package: High-thermal-performance HVSSOP-8 PowerPAD™

Output options	Adjustable Output, Fixed Output
Iout (max) (A)	0.1
Vin (max) (V)	60
Vin (min) (V)	3
Vout (max) (V)	18.5
Vout (min) (V)	1.2
Fixed output options (V)	3.3, 5
Noise (µVrms)	215
Iq (typ) (mA)	0.005
Thermal resistance θJA (°C/W)	66
TI functional safety category	Functional Safety-Capable
Rating	Automotive
Load capacitance (min) (µF)	2.2
Regulated outputs (#)	1
Features	Enable, Power good
Accuracy (%)	2
PSRR at 100 KHz (dB)	26
Dropout voltage (Vdo) (typ) (mV)	60
Operating temperature range (°C)	-40 to 125
