Описание

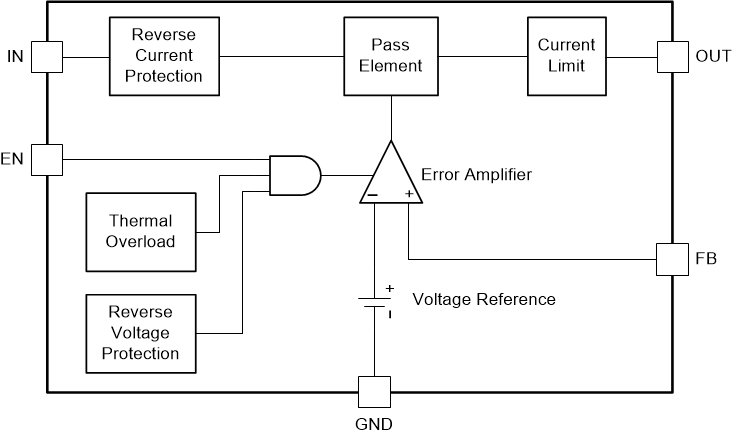

The TPS73801-SEP is a low-dropout (LDO) regulator optimized for fast transient response. The device can supply 1 A of output current with a dropout voltage of 300 mV. Operating quiescent current is 1 mA and drops to less than 1 µA in shutdown. Compared to many other regulators, quiescent current is well controlled and does not rise in dropout. In addition to fast transient response, a very low output noise makes the TPS73801-SEP regulator ideal for sensitive RF supply applications.Output voltage range is from 1.21 to 20 V and is stable with use of output capacitors as low as 10 µF. Small ceramic capacitors can be used without the necessary addition of ESR. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting, and reverse-current protection. The TPS73801-SEP regulator is available with an adjustable 1.21-V reference voltage and in the 6-pin TO-223 (DCQ) package.

VID V62/18616
Radiation hardened
- SEL, SEB, and SEGR immune up to LET = 43 MeV-cm²/mg
- SET and SEFI characterized up to LET = 43 MeV-cm²/mg
- TID assured for every wafer lot up to 20 krad(Si)
- TID characterized up to 50 krad(Si)
Space enhanced plastic
- Au bondwire and NiPdAu lead finish
- Enhanced mold compound for low outgassing
- One fabrication, assembly, and test site
- Extended product life cycle
- Extended product change notification
- Product traceability
Optimized for fast transient response
Output current: 1 A
Dropout voltage: 300 mV
Low noise: 45 µV_RMS (10 Hz to 100 kHz)
1-mA quiescent current
No protection diodes needed
Controlled quiescent current in dropout
Adjustable output voltage: 1.21 V to 20 V
Less than 1-µA quiescent current in shutdown
Stable with 10-µF output capacitor
Stable with ceramic capacitors
Reverse-battery protection
No reverse current
Thermal limiting

Output options	Adjustable Output
Iout (max) (A)	1
Vin (max) (V)	20
Vin (min) (V)	2.2
Vout (max) (V)	20
Vout (min) (V)	1.21
Noise (µVrms)	45
Iq (typ) (mA)	1
Thermal resistance θJA (°C/W)	50.5
Rating	Space
Load capacitance (min) (µF)	10
Regulated outputs (#)	1
Features	Enable, Radiation hardened
Accuracy (%)	3
PSRR at 100 KHz (dB)	63
Dropout voltage (Vdo) (typ) (mV)	240
Operating temperature range (°C)	-55 to 125
Radiation, SEL (MeV·cm2/mg)	43
Radiation, TID (typ) (krad)	50
