Описание

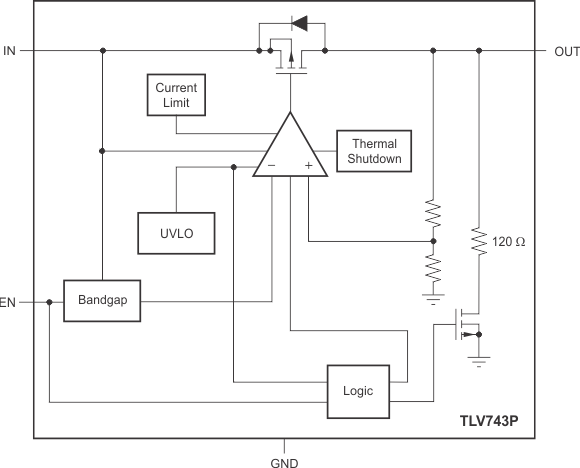

The TLV743P low-dropout linear regulator (LDO) is an ultra-small, low quiescent current LDO that sources 300 mA with good line and load transient performance. The device provides a typical accuracy of 1%. The TLV743P is designed to be stable with a small output capacitor with a value of 1 µF. The TLV743P device provides foldback current control during device power up and enabling. This functionality is especially important in battery-operated devices.The TLV743P provides an active pulldown circuit to quickly discharge output loads when the device is disabled.The TLV743P is available in standard DBV (SOT-23) and DQN (X2SON) packages.

Input Voltage Range: 1.4 V to 5.5 V
Stable Operation With 1-µF Ceramic Output Capacitor
Foldback Overcurrent Protection
Packages:
- SOT-23 (5)
- X2SON (4)
Very Low Dropout: 125 mV at 300 mA (3.3 V_OUT)
Accuracy: 1% (Typical), 1.4% (Maximum)
Low I_Q: 34 µA
Available in Fixed-Output Voltages:
1 V to 3.3 V
High PSRR: 50 dB at 1 kHz
Active Output Discharge

Output options	Fixed Output
Iout (max) (A)	0.3
Vin (max) (V)	5.5
Vin (min) (V)	1.4
Vout (max) (V)	3.3
Vout (min) (V)	1
Fixed output options (V)	1, 1.05, 1.1, 1.2, 1.5, 1.8, 2.5, 2.8, 2.85, 3, 3.3
Noise (µVrms)	120
Iq (typ) (mA)	0.034
Thermal resistance θJA (°C/W)	219
Rating	Catalog
Load capacitance (min) (µF)	1
Regulated outputs (#)	1
Features	Enable, Foldback overcurrent protection, Output discharge
Accuracy (%)	1.4
PSRR at 100 KHz (dB)	28
Dropout voltage (Vdo) (typ) (mV)	122
Operating temperature range (°C)	-40 to 125
