Описание

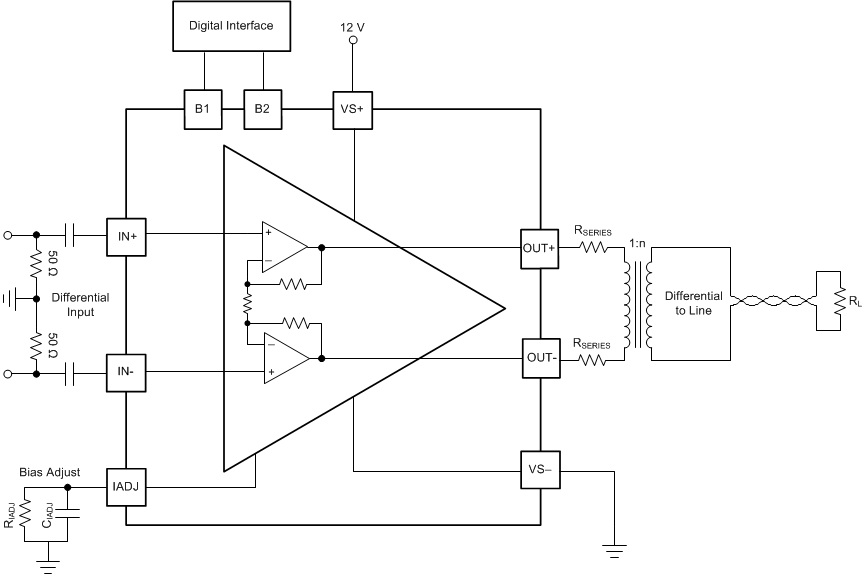

The THS6301 is a single-channel, current-feedback architecture, differential line driver that enables G.Fast and different digital subscriber line (DSL) home gateway systems. The device enables 106-MHz and 212-MHz G.Fast digital subscriber line profiles that use native discrete multitone modulation (DMT) signals. The THS6301 functions with high linearity at an 8-dBm line power through 212 MHz.The unique architecture of this device minimizes quiescent current while providing very high linearity. Internally-fixed bias settings of the amplifier provide power savings for line-driving modes where the full performance of the amplifier is not needed. For further flexibility and power savings, the overall quiescent current is adjustable by a single external bias resistor connected to one of the device pins. The device also features two line-termination modes to maintain impedance matching at very low power consumption.The device can also be used as a fixed-gain differential amplifier with bandwidth and power-scaling to suit the needs of differential applications.The device is available in a 4-mm × 4-mm, 16-pin, VQFN package.

Enables G.Fast 106-MHz, 212-MHz DSL Applications
Supports Legacy VDSL and ADSL2+ Applications
High MTPR for G.Fast and Legacy Applications (Line Power = 8 dBm):
- ADSL2+ = 69 dB
- VDSL-17a = 73 dB
- VDSL-30a = 69 dB
- G.Fast 106 MHz = 62 dB
- G.Fast 212 MHz = 55 dB
Multiple Power Modes for Different Profiles
Adjustable Bias Current With External Resistor
Low-Power Line Termination Mode: 10.2 mA
Power-Down Mode
12-V Technology to Support High-Power Output

Number of channels	1
Architecture	DSL Line Driver
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	11.4
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	12.6
BW at Acl (MHz)	1100
Acl, min spec gain (V/V)	8.5
Vn at flatband (typ) (nV√Hz)	3.5
Vn at 1 kHz (typ) (nV√Hz)	3.5
Iq per channel (typ) (mA)	44.8
Rail-to-rail	No
Features	Adjustable BW/IQ/IOUT, Shutdown
Rating	Catalog
Operating temperature range (°C)	-40 to 85
GBW (typ) (MHz)	1100
Iout (typ) (mA)	85
2nd harmonic (dBc)	97
3rd harmonic (dBc)	100
Frequency of harmonic distortion measurement (MHz)	1
