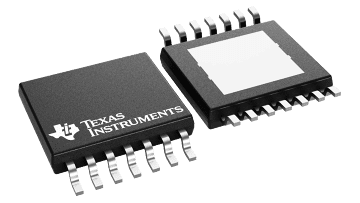

THS6022 Texas instruments

THS6022

Уточнить цену

THS6022

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

The THS6022 contains two high-speed drivers capable of providing 200-mA output current (minimum) into a 50- load. These drivers can be configured differentially to drive a 50-V p-p output signal over low-impedance lines. The drivers are current feedback amplifiers, designed for the high slew rates necessary to support low total harmonic distortion (THD) in xDSL applications. The THS6022 is ideally suited for asymmetrical digital subscriber line (ADSL) at the remote terminal, high-data-rate digital subscriber line (HDSL), and very high-data-rate digital subscribe line (VDSL), where it supports the high-peak voltage and current requirements of these applications. Separate power supply connections for each driver are provided to minimize crosstalk. The THS6022 is packaged in the patented PowerPAD™ package. This package provides outstanding thermal characteristics in a small-footprint package that is fully compatible with automated surface-mount assembly procedures. The exposed thermal pad on the underside of the package is in direct contact with the die. By simply soldering the pad to the PWB copper and using other thermal outlets, the heat is conducted away from the junction.

ADSL, HDSL and VDSL Differential Line Driver
200-mA Output Current Minimum Into 50- Load
High Speed
- 210-MHz Bandwidth (-3-dB) at 50- Load
- 1900-V/µs Slew Rate, G = 5
Low Distortion
- -69-dB Third-Order Harmonic Distortion at f = 1 MHz, 50- Load, and V_O(PP) = 20 V
Independent Power Supplies for Low Crosstalk
Wide Supply Range ±5 V to ±15 V
Thermal-Shutdown and Short-Circuit Protection
Evaluation Module Available

PowerPAD, MicroStar Junior are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.

Number of channels	2
Architecture	DSL Line Driver, PLC Line Driver
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	9
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	33
BW at Acl (MHz)	210
Acl, min spec gain (V/V)	1
Vn at flatband (typ) (nV√Hz)	1.7
Vn at 1 kHz (typ) (nV√Hz)	1.8
Iq per channel (typ) (mA)	7.2
Vos (offset voltage at 25°C) (max) (mV)	5
Rail-to-rail	No
Rating	Catalog
Operating temperature range (°C)	-40 to 85, 0 to 70
CMRR (typ) (dB)	73
Input bias current (max) (pA)	10000000
Offset drift (typ) (µV/°C)	20
GBW (typ) (MHz)	210
Iout (typ) (mA)	250
2nd harmonic (dBc)	76
3rd harmonic (dBc)	80
Frequency of harmonic distortion measurement (MHz)	1
