Описание

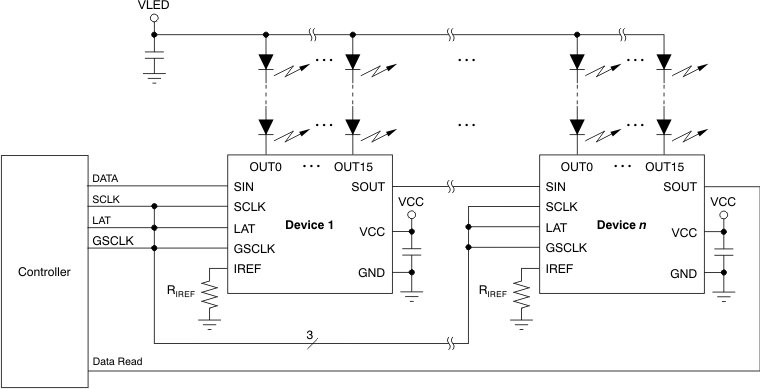

The TLC59482 is a 16-channel, constant-current sink driver. Each channel has an individually-adjustable, pulse width modulation (PWM) grayscale (GS) brightness control with 65,536 steps. All channels have a 64-step global brightness control (BC). BC adjusts brightness deviation with other LED drivers. GS and BC data are accessible via a serial interface port.

16 Constant-Current Sink Output Channels
Sink Current Capability with Max BC Data:
- 1 mA to 35 mA (V_CC ≤ 3.6 V)
- 1 mA to 45 mA (V_CC > 3.6 V)
Global Brightness Control (BC):
- 6-Bit (64 Steps) with 0% to 100% Range (default is 50%)
LED Power-Supply Voltage: Up to 10 V
VCC: 3.0 V to 5.5 V
Constant-Current Accuracy:
- Channel-to-Channel: ±1% (typ), ±2.5% (max)
- Device-to-Device: ±2% (typ), ±4% (max)
Data Transfer Rate: 30 MHz
Grayscale Control Clock: 33 MHz
Auto Display Repeat
Auto Data Refresh
Display Timing Reset
Four-Channel Grouped Delay Switching to Prevent Inrush Current
Operating Temperature: –40°C to +85°C

Features	PWM LED Driver
Analog dimming steps	64
Data transfer rate (typ) (MHz)	33
Ch to ch accuracy (typ) (±%)	1
Rating	Catalog
Operating temperature range (°C)	-40 to 85
