Описание

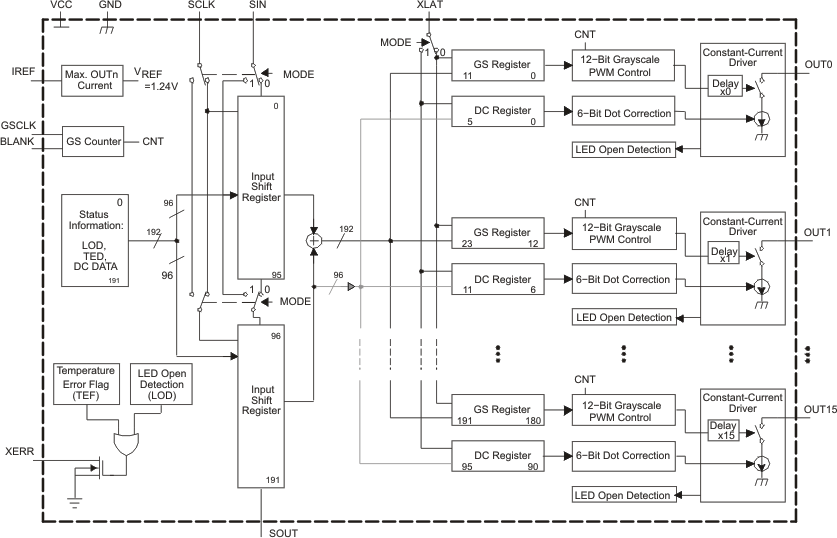

The TLC59401 is a 16-channel, constant-current sink, LED driver. Each channel has an individually adjustable 4096-step grayscale PWM brightness control and a 64-step constant-current sink (dot correction). The dot correction adjusts the brightness variations between LED channels and other LED drivers. Both grayscale control and dot correction are accessible via a serial interface. A single external resistor sets the maximum current value of all 16 channels. The TLC59401 features two error information circuits. The LED open detection (LOD) indicates a broken or disconnected LED at an output terminal. The thermal error flag (TEF) indicates an over-temperature condition.

16 Channels
12-Bit (4096 Steps) Grayscale PWM Control
Dot Correction
- 6-Bit (64 Steps)
Drive Capability (Constant-Current Sink)
- 0 mA to 80 mA (V_CC ≤ 3.6 V)
- 0 mA to 120 mA (V_CC > 3.6 V)
LED Power-Supply Voltage up to 17 V
V_CC = 3.0 V to 5.5 V
Serial Data Interface
Controlled Inrush Current
30-MHz Data Transfer Rate
CMOS Level I/O
Error Information
- LOD: LED Open Detection
- TEF: Thermal Error Flag
APPLICATIONS
- Monocolor, Multicolor, Full-Color LED Displays
- LED Signboards
- Display Back-Lighting

PowerPAD is a trademark of Texas Instruments Incorporated.
All other trademarks are the property of their respective owners.

Features	Dot Correction, Error Flag, Fault Detection, LED Open Detection, LED Short to Ground Detection, LED Short to VLED Detection, PWM LED Driver, Power good
Analog dimming steps	64
Data transfer rate (typ) (MHz)	30
Ch to ch accuracy (typ) (±%)	1
Rating	Catalog
Operating temperature range (°C)	-40 to 85
