Описание

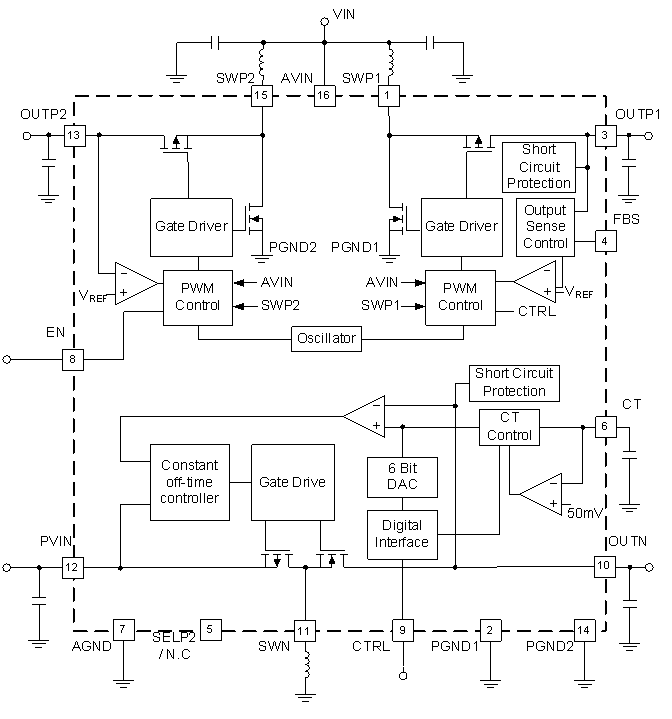

The TPS65632 is designed to drive AMOLED displays (Active Matrix Organic Light Emitting Diode) requiring three supply rails, VPOS, VNEG and AVDD. The device integrates a boost converter for VPOS, an inverting buck-boost converter for VNEG, and a boost converter for AVDD, all of which are suitable for battery operated products. The digital control pin (CTRL) allows programming the negative output voltage in digital steps. The TPS65632 uses a novel technology enabling excellent line and load regulation.

2.9-V to 4.5-V Input Voltage Range
Boost Converter 1 (V_POS)
- 4.6-V Output Voltage
- 0.5% Accuracy (25°C to 85°C )
- Dedicated Output Sense Pin
- 300-mA Output Current
Inverting Buck-Boost Converter (V_NEG)
- –1.5-V to –5.4-V Programmable Output
  Voltage
- –4-V Default Output Voltage
- 300-mA Output Current
Boost Converter 2 (AV_DD)
- 5.8-V or 7.7-V Output Voltage
- 30-mA Output Current
Excellent Line Transient Regulation
Short-Circuit Protection
Thermal Shutdown
3-mm × 3-mm, 16-Pin WQFN Package

Display type	AMOLED
IC integration	AMOLED bias
Vin (min) (V)	2.9
Vin (max) (V)	4.5
Applications	7 inches or less
Source driver voltage (min) (V)	5.8
Source driver voltage (max) (V)	7.7
Level shifter/scan driver (Ch)	0
V_POS (min) (V)	4.6
V_POS (max) (V)	4.6
V_NEG (min) (V)	-5.4
V_NEG (max) (V)	-1.4
Features	Digital control interface
Topology	Boost, Buck-Boost
Rating	Catalog
Operating temperature range (°C)	-40 to 85
