Описание

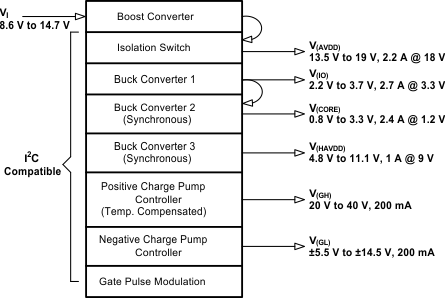

The TPS65177/A provides all supply rails needed by a GIP (Gate-in-Panel) or non-GIP TFT-LCD panel. All output voltages are I2C programmable. V(IO) and V(CORE) for the T-CON, V(AVDD) and V(HAVDD) for the Source Driver and the Gamma Buffer, V(GH) and V(GL) for the Gate Driver or the Level Shifter. For use with non-GIP technology Gate Pulse Modulation (GPM) is implemented, for use with GIP technology the V(GH) rail can be temperature compensated. Furthermore a High Voltage Stress Mode (HVS) for V(AVDD) and V(HAVDD) and an integrated V(AVDD) Isolation Switch is implemented. V(CORE), V(HAVDD), V(GH), V(GL), GPM and the V(GH) temperature compensation can be enabled and disabled by I2C programming. A single BOM (Bill of Materials) can cover several panel types and sizes whose desired output voltage levels can be programmed in production and stored in a non-volatile integrated memory.

Enable / Disable
- TPS65177: V_I power cycle
- TPS65177A: V_I power cycle or EN-pin
8.6-V to 14.7-V Input Voltage Range
Non-Synchronous Boost Converter (V_(AVDD))
- Integrated Isolation Switch
- 13.5-V to 19.8-V Output Voltage (I²C)
- 15-V Default Output Voltage
- 4.25-A Switch Current Limit (I²C)
- High Voltage Stress Mode (I²C)
Synchronous Buck Converter (V_(HAVDD))
- 4.8-V to 11.1-V Output Voltage (I²C)
- 7.5-V Default Output Voltage
- 1.7-A Switch Current Limit
- High Voltage Stress Mode (I²C)
Non-Synchronous Buck Converter (V_(IO))
- 2.2-V to 3.7-V Output Voltage (I²C)
- 2.5-V Default Output Voltage
- 3-A Switch Current Limit
Synchronous Buck Converter (V_(CORE))
- 0.8-V to 3.3-V Output Voltage (I²C)
- 1-V Default Output Voltage
- 2.5-A Switch Current Limit
Positive Charge-Pump Controller (V_(GH))
- 20-V to 40-V Output Voltage (I²C)
- 28-V Default Output Voltage
- Temp. Compensation Offset 0-V to 15-V (I²C)
- 4-V Default Offset (28 V to 32 V)
Negative Charge-Pump Controller (V_(GL))
- –14.5-V to –5.5-V Output Voltage (I²C)
- –7.9-V Default Output Voltage
Gate Pulse Modulation (GPM)
- Down to 0-V, 5-V, 10-V or 15-V (I²C)
- 0-V Default Discharge Voltage
Temperature Compensation for V_(GH)
Thermal Shutdown
I²C Compatible Interface
EEPROM Memory
6-mm × 6-mm × 1-mm 40-Pin VQFN Package

Display type	LCD unipolar
IC integration	LCD bias
Vin (min) (V)	8.6
Vin (max) (V)	14.7
Applications	13 to 21 inches, 21 inches and above
Source driver voltage (min) (V)	13.5
Source driver voltage (max) (V)	19.8
Level shifter/scan driver (Ch)	0
V_POS (min) (V)	20
V_POS (max) (V)	40
V_NEG (min) (V)	-14.5
V_NEG (max) (V)	-5.5
Features	GPM or GVS, HAVDD, I2C interface, Temperature sensor or compensation
Topology	Boost, Buck
Rating	Catalog
Operating temperature range (°C)	-40 to 150
