Описание

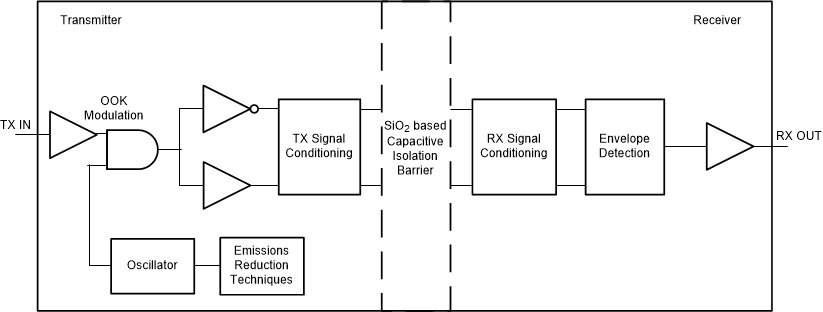

The UCC5390-Q1 is a single-channel, isolated gate driver with 10-A source and 10-A sink peak current designed to drive MOSFETs, IGBTs, and SiC MOSFETs. The UCC5390-Q1 has its UVLO2 referenced to GND2, which facilitates bipolar supplies and optimizes SiC and IGBT switching behavior and robustness. The UCC5390-Q1 is available in 8.5 mm SOIC-8 (DWV) package and can support isolation voltage up to 5-kVRMS. The input side is isolated from the output side with SiO2 capacitive isolation technology with longer than 40 years isolation barrier lifetime. With its high drive strength and true UVLO detection, this device is a good fit for driving IGBTs and SiC MOSFETs in applications such as on-board chargers and traction inverters. Compared to an optocoupler, the UCC5390-Q1 has lower part-to-part skew, lower propagation delay, higher operating temperature, and higher CMTI.

5-kV_RMS single channel isolated gate driver
AEC-Q100 qualified for automotive applications
- Temperature grade 1
- HBM ESD classification level H2
- CDM ESD classification level C6
12-V UVLO referenced to GND2
8-pin DWV (8.5mm creepage) package
60-ns (typical) propagation delay
Small part-to-part skew in propagation delay
100-V/ns minimum CMTI
10-A minimum peak current
3-V to 15-V input supply voltage
Up to 33-V driver supply voltage
Negative 5-V handling capability on input pins
Safety-related certifications:
- 7000-V_PK isolation (DWV) per DIN V VDE V 0884-11:2017-01 (planned)
- 5000-V_RMS (DWV) isolation rating for 1 minute per UL 1577
- CQC Certification per GB4943.1-2011
CMOS inputs
Operating junction temperature: –40°C to +150°C

Number of channels	1
Isolation rating	Reinforced
Withstand isolation voltage (VISO) (Vrms)	5000
Transient isolation voltage (VIOTM) (VPK)	7000
Power switch	IGBT, SiCFET
Peak output current (A)	17
Features	UVLO reference to ground
Output VCC/VDD (max) (V)	33
Output VCC/VDD (min) (V)	13.2
Input VCC (min) (V)	3
Input VCC (max) (V)	15
TI functional safety category	Functional Safety-Capable
Propagation delay time (µs)	0.065
Input threshold	CMOS
Operating temperature range (°C)	-40 to 125
Rating	Automotive
Bus voltage (max) (V)	2121
Rise time (ns)	26
Fall time (ns)	22
Undervoltage lockout (typ) (V)	12
