UCC5320 Texas instruments

UCC5320

Уточнить цену

UCC5320

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

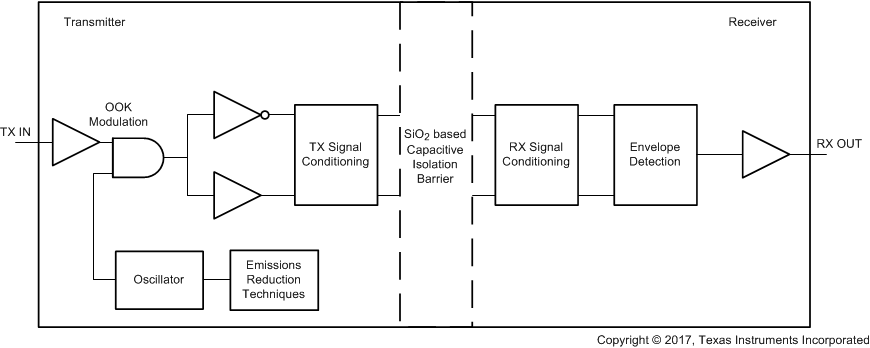

Описание

The UCC53x0 is a family of single-channel, isolated gate drivers designed to drive MOSFETs, IGBTs, SiC MOSFETs, and GaN FETs (UCC5350SBD). The UCC53x0S provides a split output that controls the rise and fall times individually. The UCC53x0M connects the gate of the transistor to an internal clamp to prevent false turnon caused by Miller current. The UCC53x0E has its UVLO2 referenced to GND2 to get a true UVLO reading. The UCC53x0 is available in a 4 mm SOIC-8 (D) or 8.5 mm SOIC-8 (DWV) package and can support isolation voltage up to 3 kVRMS and 5 kVRMS respectively. With these various options the UCC53x0 family is a good fit for motor drives and industrial power supplies.Compared to an optocoupler, the UCC53x0 family has lower part-to-part skew, lower propagation delay, higher operating temperature, and higher CMTI.

Feature Options
- Split Outputs (UCC53x0S)
- UVLO Referenced to GND2 (UCC53x0E)
- Miller Clamp Option (UCC53x0M)
8-pin D (4-mm Creepage) and
DWV (8.5mm Creepage) Package
60-ns (Typical) Propagation Delay
100-kV/µs Minimum CMTI
Isolation Barrier Life > 40 Years
3-V to 15-V Input Supply Voltage
Up to 33-V Driver Supply Voltage
- 8-V and 12-V UVLO Options
Negative 5-V Handling Capability on Input Pins
Safety-Related Certifications:
- 7000-V_PK Isolation DWV (Planned) and 4242-V_PK Isolation D per DIN V VDE V 0884-11:2017-01 and DIN EN 61010-1
- 5000-V_RMS DWV and 3000-V_RMS D
  Isolation Rating for 1 minute per UL 1577
- CQC Certification per GB4943.1-2011
  D and DWV (Planned)
CMOS Inputs
Operating Temperature: –40°C to +125°C

Number of channels	1
Isolation rating	Basic, Reinforced
Withstand isolation voltage (VISO) (Vrms)	3000, 5000
Transient isolation voltage (VIOTM) (VPK)	4242, 7000
Power switch	IGBT
Peak output current (A)	4.4
Features	Split output
Output VCC/VDD (max) (V)	33
Output VCC/VDD (min) (V)	13.2
Input VCC (min) (V)	3
Input VCC (max) (V)	15
Propagation delay time (µs)	0.06
Input threshold	CMOS
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Bus voltage (max) (V)	2121
Rise time (ns)	12
Fall time (ns)	10
Undervoltage lockout (typ) (V)	12
