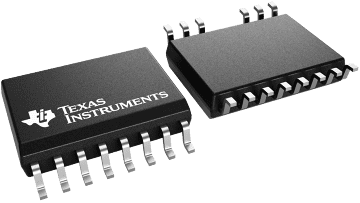

UCC21540 Texas instruments

UCC21540
Уточнить цену
UCC21540
Уточнить цену
СРАВНИТЬ
В СРАВНЕНИИ
Уточнить цену
The UCC2154x is an isolated dual channel gate driver family designed with up to 4-A/6-A peak source/sink current to drive power MOSFET, IGBT, and GaN transistors. UCC2154x in DWK package also offers 3.3-mm minimum channel-to-channel spacing which facilitates higher bus voltage.The UCC2154xfamily can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver. The input side is isolated from the two output drivers by a 5.7-kVRMS isolation barrier, with a minimum of 100-V/ns common-mode transient immunity (CMTI).Protection features include: resistor programmable dead time, disable feature to shut down both outputs simultaneously, integrated de-glitch filter that rejects input transients shorter than 5ns, and negative voltage handling for up to –2V spikes for 200ns on input and output pins. All supplies have UVLO protection.
  • Wide body package options
    • DW SOIC-16: pin-2-pin to UCC21520
    • DWK SOIC-14: 3.3 mm Ch-2-Ch spacing
  • Up to 4-A peak source and 6-A peak sink output
  • Up to 18-V VDD output drive supply
    • 5-V and 8-V VDD UVLO Options
  • CMTI greater than 100 V/ns
  • Switching parameters:
    • 40-ns maximum propagation delay
    • 5-ns maximum delay matching
    • 5.5-ns maximum pulse-width distortion
    • 35-µs maximum VDD power-up delay
  • Resistor-programmable dead time
  • TTL and CMOS compatible inputs
  • Safety-related certifications:
    • 8000-VPK reinforced isolation per DIN V VDE V 0884-11:2017-01
    • 5700-VRMS isolation for 1 minute per UL 1577
    • CQC certification per GB4943.1-2011
Number of channels 2
Isolation rating Reinforced
Withstand isolation voltage (VISO) (Vrms) 5700
Transient isolation voltage (VIOTM) (VPK) 8000
Power switch GaNFET, IGBT, MOSFET
Peak output current (A) 6
Features Disable, Programmable dead time
Output VCC/VDD (max) (V) 18
Output VCC/VDD (min) (V) 9.2
Input VCC (min) (V) 3
Input VCC (max) (V) 5.5
Propagation delay time (µs) 0.028
Input threshold CMOS, TTL
Operating temperature range (°C) -40 to 125
Rating Catalog
Bus voltage (max) (V) 1414
Rise time (ns) 5
Fall time (ns) 6
Undervoltage lockout (typ) (V) 8
