Описание

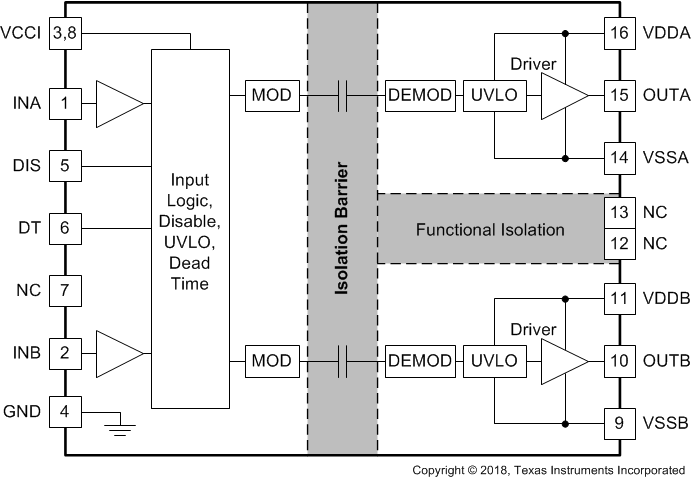

The UCC21222 device is an isolated dual channel gate driver with programmable dead time. It is designed with 4-A peak-source and 6-A peak-sink current to drive power MOSFET, IGBT, and GaN transistors. The UCC21222 device can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver. 5ns delay matching performance allows two outputs to be paralleled, doubling the drive strength for heavy load conditions without risk of internal shoot-through.The input side is isolated from the two output drivers by a 3.0-kVRMS isolation barrier, with a minimum of 100-V/ns common-mode transient immunity (CMTI).Resistor programmable dead time gives the capability to adjust dead time for system constraints to improve efficiency and prevent output overlap. Other protection features include: Disable feature to shut down both outputs simultaneously when DIS is set high, integrated deglitch filter that rejects input transients shorter than 5-ns, and negative voltage handling for up to -2-V spikes for 200-ns on input and output pins. All supplies have UVLO protection.

Resistor-Programmable Dead Time
Universal: Dual Low-Side, Dual High-Side or Half-Bridge Driver
4-A Peak Source, 6-A Peak Sink Output
3-V to 5.5-V Input VCCI Range
Up to 18-V VDD Output Drive Supply
- 8-V VDD UVLO
Switching Parameters:
- 28-ns Typical Propagation Delay
- 10-ns Minimum Pulse Width
- 5-ns Maximum Delay Matching
- 5.5-ns Maximum Pulse-Width Distortion
TTL and CMOS Compatible Inputs
Integrated Deglitch Filter
I/Os withstand –2-V for 200 ns
Common-Mode Transient Immunity (CMTI) Greater than 100-V/ns
Isolation Barrier Life >40 Years
Surge Immunity up to 7800-V_PK
Narrow Body SOIC-16 (D) Package
Safety-Related Certifications (Planned):
- 4242-V_PK Isolation per DIN V VDE V 0884-11:2017-01 and DIN EN 61010-1
- 3000-V_RMS Isolation for 1 Minute per UL 1577
- CSA Certification per IEC 60950-1, IEC 62368-1 and IEC 61010-1 End Equipment Standards
- CQC Certification per GB4943.1-2011
Create a Custom Design Using the UCC21222 With the WEBENCH^® Power Designer

Number of channels	2
Isolation rating	Basic
Withstand isolation voltage (VISO) (Vrms)	3000
Transient isolation voltage (VIOTM) (VPK)	4242
Power switch	GaNFET, IGBT, MOSFET
Peak output current (A)	6
Features	Disable, Programmable dead time
Output VCC/VDD (max) (V)	18
Output VCC/VDD (min) (V)	9.2
Input VCC (min) (V)	3
Input VCC (max) (V)	5.5
Propagation delay time (µs)	0.028
Input threshold	CMOS, TTL
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Bus voltage (max) (V)	990
Rise time (ns)	5
Fall time (ns)	6
Undervoltage lockout (typ) (V)	8
