Описание

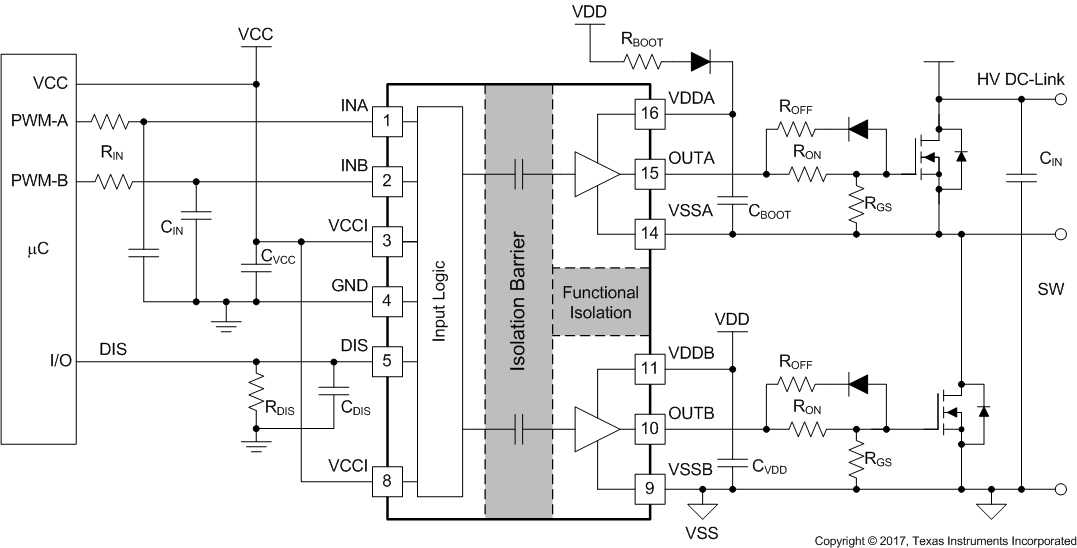

The UCC21220 and UCC21220A devices are basic and functional isolated dual-channel gate drivers with 4-A peak-source and 6-A peak-sink current. They are designed to drive power MOSFETs and GaNFETs in PFC, Isolated DC/DC, and synchronous rectification applications, with fast switching performance and robust ground bounce protection through greater than 100-V/ns common-mode transient immunity (CMTI).These devices can be configured as two low-side drivers, two high-side drivers, or half-bridge drivers. Two outputs can be paralleled to form a single driver which doubles the drive strength for heavy load conditions due to the best-in-class delay matching performance.Protection features include: DIS pin shuts down both outputs simultaneously when it is set high; INA/B pin rejects input transient shorter than 5-ns; both inputs and outputs can withstand –2-V spikes for 200-ns, all supplies have undervoltage lockout (UVLO), and active pull down protection clamps the output below 2.1-V when unpowered or floated.With these features, these devices enable high efficiency, high power density, and robustness in a wide variety of power applications.

Supports basic and functional isolation
CMTI greater than 100-V/ns
4-A peak source, 6-A peak sink output
Switching parameters:
- 40-ns maximum propagation delay
- 5-ns maximum delay matching
- 5.5-ns maximum pulse-width distortion
- 35-µs maximum VDD power-up delay
Up to 18-V VDD output drive supply
- 5-V and 8-V VDD UVLO Options
Operating temp. range (T_A) –40°C to 125°C
Narrow body SOIC-16 (D) package
Rejects input pulses shorter than 5-ns
TTL and CMOS compatible inputs
Safety-related certifications:
- 4242-V_PK isolation per DIN V VDE V 0884-11:2017-01 and DIN EN 61010-1 (planned)
- 3000-V_RMS isolation for 1 minute per UL 1577
- CQC certification per GB4943.1-2011 (planned)

Number of channels	2
Isolation rating	Basic
Withstand isolation voltage (VISO) (Vrms)	3000
Transient isolation voltage (VIOTM) (VPK)	4242
Power switch	GaNFET, IGBT, MOSFET
Peak output current (A)	6
Features	Disable
Output VCC/VDD (max) (V)	18
Output VCC/VDD (min) (V)	9.2
Input VCC (min) (V)	3
Input VCC (max) (V)	5.5
Propagation delay time (µs)	0.028
Input threshold	CMOS, TTL
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Bus voltage (max) (V)	990
Rise time (ns)	5
Fall time (ns)	6
Undervoltage lockout (typ) (V)	8
