Описание

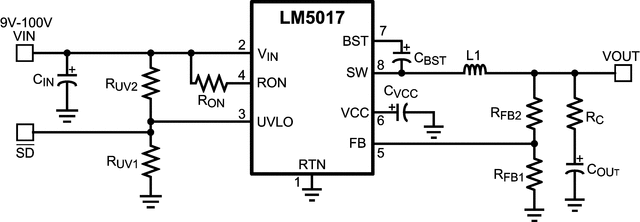

The LM5017 is a 100-V, 600-mA synchronous stepdown regulator with integrated high side and low side MOSFETs. The constant on-time (COT) control scheme employed in the LM5017 requires no loop compensation, provides excellent transient response, and enables very high step-down ratios. The on-time varies inversely with the input voltage resulting in nearly constant frequency over the input voltage range. A high voltage startup regulator provides bias power for internal operation of the IC and for integrated gate drivers. A peak current limit circuit protects against overload conditions. The undervoltage lockout (UVLO) circuit allows the input undervoltage threshold and hysteresis to be independently programmed. Other protection features include thermal shutdown and bias supply undervoltage lockout (VCC UVLO). The LM5017 device is available in WSON-8 and HSOP PowerPAD-8 plastic packages.

Wide 7.5-V to 100-V input range
Integrated 100-V high-side and low-side switches
No schottky required
Constant on-time control
No loop compensation required
Ultra-fast transient response
Nearly constant operating frequency
Intelligent peak current limit
Adjustable output voltage from 1.225 V
Precision 2% feedback reference
Frequency adjustable to 1 MHz
Adjustable undervoltage lockout (UVLO)
Remote shutdown
Thermal shutdown
Packages:
- WSON-8
- SO PowerPAD™-8
Create a custom regulator design using WEBENCH Power Designer

Device type	Converters
Topology	Buck
Vin (min) (V)	7.5
Vin (max) (V)	100
Vout (min) (V)	1.25
Vout (max) (V)	90
Iout (max) (A)	0.6
Features	Synchronous rectification
Operating temperature range (°C)	-40 to 125
Regulated outputs (#)	1
Control mode	Constant on-time (COT)
Rating	Catalog
