TRF37T05 Texas instruments

TRF37T05

Уточнить цену

TRF37T05

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

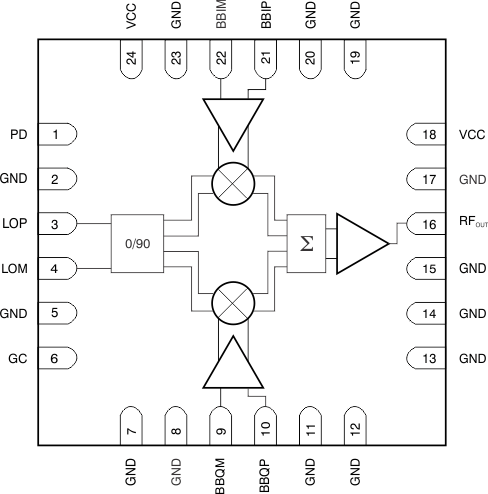

The TRF37T05 is a low-noise direct quadrature modulator with exceptional TDD performance. It is capable of converting complex modulated signals from baseband or IF directly up to RF. The TRF37T05 is a high-performance, superior-linearity device that is ideal to up-convert to RF frequencies of 300 MHz (Note: appropriate matching network is required for optimal performance at 300 MHz) through 4 GHz. The modulator is implemented as a double-balanced mixer. The RF output block consists of a differential-to-single-ended converter that is capable of driving a single-ended 50-Ω load. The TRF37T05 requires a 0.25-V common-mode voltage for optimum linearity performance. The TRF37T05 also provides a fast power-down pin that can be used to reduce power dissipation while maintaining optimized adjusted carrier feed-through performance in TDD applications. The TRF37T05 is available in an RGE-24 VQFN package.

High Linearity:
- Output IP3: 30 dBm at 1850 MHz
Low Output Noise Floor: –160 dBm/Hz
78-dBc Single-Carrier WCDMA ACPR
at –10-dBm Channel Power
Unadjusted Carrier Suppression: –40 dBm
Unadjusted Sideband Suppression: –45 dBc
Single Supply: 3.3-V Operation
1-bit Gain Step Control
Fast Power-Up/Power-Down

Frequency (min) (MHz)	300
Frequency (max) (MHz)	4000
I/Q input common-mode voltage (typ) (V)	0.25
PLL/VCO	No
P1dB (typ) (dBm)	13
OIP3 (typ) (dBm)	30
Noise floor (typ) (dBm/Hz)	-160
Unadjusted carrier suppression (typ) (dBm)	-45
Unadjusted sideband suppression (typ) (dBc)	-45
Rating	Catalog
Operating temperature range (°C)	-40 to 85
