Описание

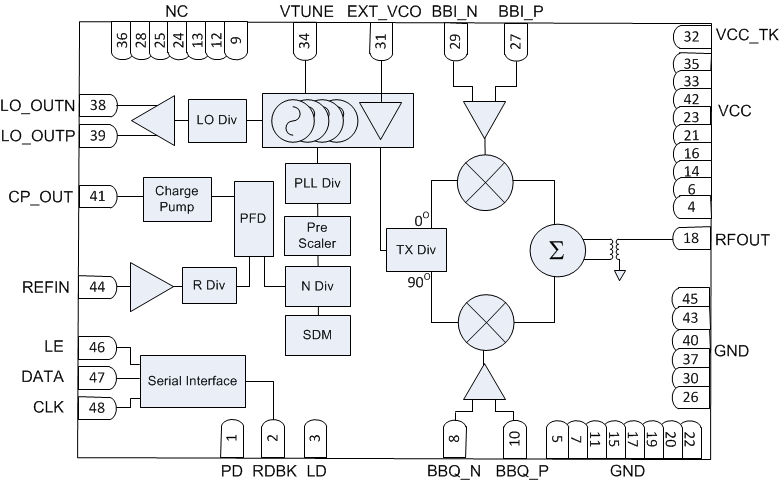

The TRF3722 is a high performance direct conversion quadrature modulator with exceptional linearity and low noise performance. The typical 0.25-V baseband common mode voltage supports seamless interface with current source DACs. The device integrates the PLL and VCO to provide the local oscillator (LO) to the modulator. The PLL and VCO provides excellent phase noise performance to satisfy the most stringent transmit communication requirements. The device also provides additional LO output for driving a second modulator or down converting mixer. The modulator features a high gain mode for a typical 3-dB gain increase and a low power mode when power optimization is desired.

IQ Modulator with Integrated PLL and VCO
Integer-N/Fractional-N PLL
Modulator Supports 400 MHz to 4200 MHz
PLL and VCO Supports 280 MHz to 4100 MHz
OIP3 at 900 MHz = 31 dBm
OIP3 at 1800 MHz = 30 dBm
VCO 1800-MHz Open Loop Phase Noise = –141 dBc/Hz at 1 MHz Offset
Independent LO Output Supports divide-by 1/2/4/8
Modulator Low Power and High Gain Modes
Multiple Power Down Modes

Frequency (min) (MHz)	400
Frequency (max) (MHz)	4200
I/Q input common-mode voltage (typ) (V)	0.25
PLL/VCO	Yes
P1dB (typ) (dBm)	12
OIP3 (typ) (dBm)	31
Noise floor (typ) (dBm/Hz)	-159
Unadjusted carrier suppression (typ) (dBm)	-50
Unadjusted sideband suppression (typ) (dBc)	-50
Rating	Catalog
Operating temperature range (°C)	-40 to 85
