Описание

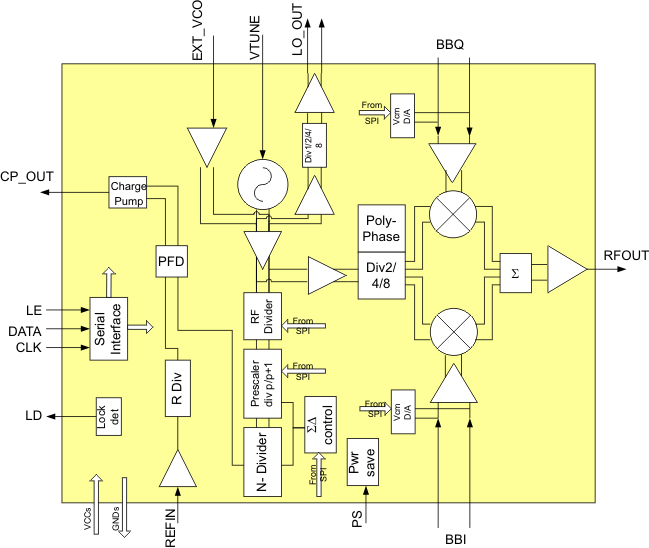

TRF372017 is a high-performance, direct up-conversion device, integrating a high-linearity, low-noise IQ modulator and an integer-fractional PLL/VCO. The VCO uses integrated frequency dividers to achieve a wide, continuous tuning range of 300 MHz to 4800 MHz. The LO is available as an output with independent frequency dividers. The device also accepts input from an external LO or VCO. The modulator baseband inputs can be biased either internally or externally. Internal DC offset adjustment enables carrier cancellation. The device is controlled through a 3-wire serial programming interface (SPI). A control pin invokes power-save mode to reduce power consumption while keeping the VCO locked for fast start-up.

Fully Integrated PLL/VCO and IQ Modulator
LO Frequency from 300 MHz to 4.8 GHz
76-dBc Single-Carrier WCDMA ACPR at –8-dBm
Channel Power
OIP3 of 26 dBm
P1dB of 11.5 dBm
Integer/Fractional PLL
Phase Noise –132 dBc/Hz
(at 1 MHz, f_VCO of 2.3 GHz)
Low Noise Floor: –160 dBm/Hz
Input Reference Frequency Range: Up to
160 MHz
VCO Frequency Divided by 1-2-4-8 Output
APPLICATIONS
- Wireless Infrastructure
  - CDMA: IS95, UMTS, CDMA2000,
    TD-SCDMA
  - TDMA: GSM, IS-136, EDGE/UWC-136
  - LTE
- Wireless Local Loop
- Point-to-Point Wireless Access
- Wireless MAN Wideband Transceivers

All other trademarks are the property of their respective owners

Frequency (min) (MHz)	300
Frequency (max) (MHz)	4800
I/Q input common-mode voltage (typ) (V)	1.7
PLL/VCO	Yes
P1dB (typ) (dBm)	12
OIP3 (typ) (dBm)	26
Noise floor (typ) (dBm/Hz)	-163
Unadjusted carrier suppression (typ) (dBm)	-40
Unadjusted sideband suppression (typ) (dBc)	-40
Rating	Catalog
Operating temperature range (°C)	-40 to 85
