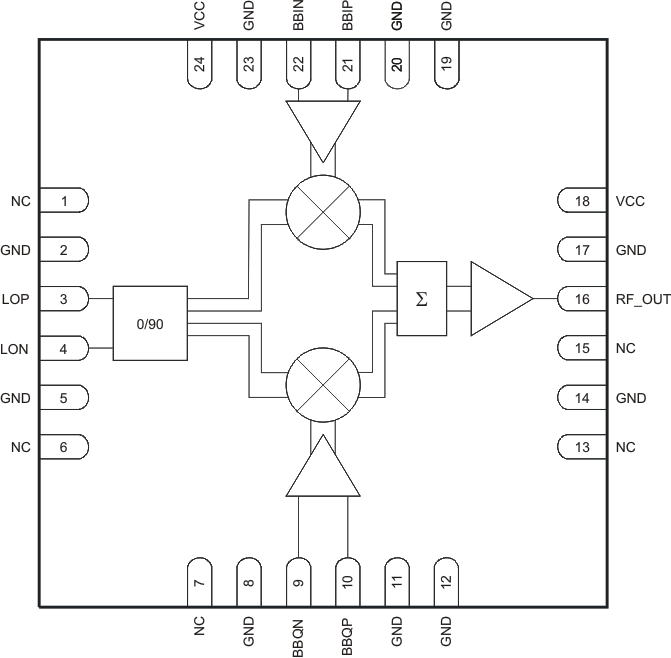

The TRF370317 is a low-noise direct quadrature modulator, capable of converting complex modulated signals from baseband or IF directly up to RF. The TRF370317 is a high-performance, superior-linearity device that is ideal to RF frequencies of 400 MHz through 4 GHz. The modulator is implemented as a double-balanced mixer. The RF output block consists of a differential to single-ended converter and an RF amplifier capable of driving a single-ended 50- load without any need of external components. The TRF370317 requires a 1.7-V common-mode voltage for optimum linearity performance.

76-dBc Single-Carrier WCDMA ACPR at –8 dBm Channel Power
Low Noise Floor: –163 dBm/Hz
OIP3 of 26.5 dBm
P1dB of 12 dBm
Unadjusted Carrier Feedthrough of –40 dBm
Unadjusted Side-Band Suppression of –45 dBc
Single Supply: 4.5-V–5.5-V Operation
Silicon Germanium Technology
1.7-V CM at I, Q Baseband Inputs
APPLICATIONS
- Cellular Base Station Transceiver
- CDMA: IS95, UMTS, CDMA2000, TD-SCDMA
- TDMA: GSM, IS-136, EDGE/UWC-136
- Multicarrier GSM
- WiMAX: 802.16d/e
- 3GPP: LTE
- Wireless MAN Wideband Transceivers

Frequency (min) (MHz)	400
Frequency (max) (MHz)	4000
I/Q input common-mode voltage (typ) (V)	1.7
PLL/VCO	No
P1dB (typ) (dBm)	12
OIP3 (typ) (dBm)	26.5
Noise floor (typ) (dBm/Hz)	-163
Unadjusted carrier suppression (typ) (dBm)	-40
Unadjusted sideband suppression (typ) (dBc)	-45
Rating	Catalog
Operating temperature range (°C)	-40 to 85
