Описание

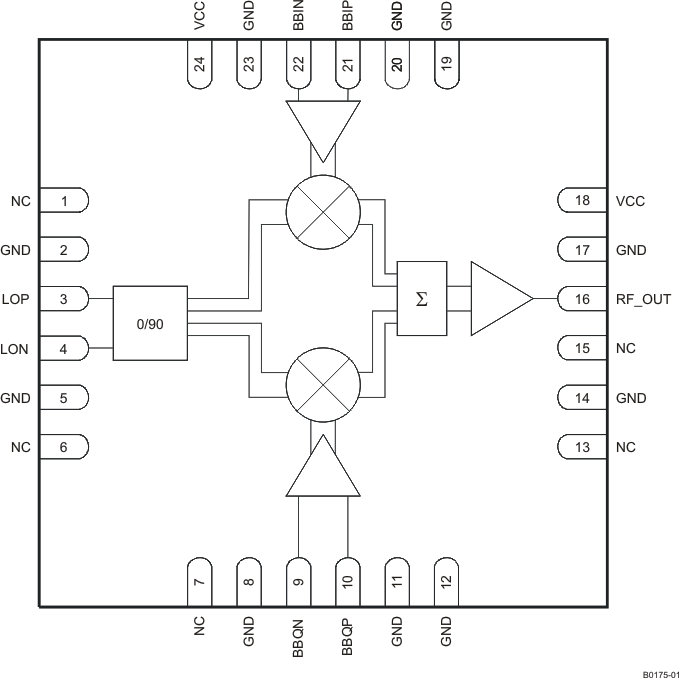

The TRF370315 and TRF370333 are low-noise direct quadrature modulators, capable of converting complex modulated signals from baseband or IF directly up to RF. The TRF370315 and TRF370333 are ideal for high-performance direct RF modulation from 350 MHz up to 4 GHz. These modulators are implemented as a double-balanced mixer. The RF output block consists of a differential to single-ended converter and an RF amplifier capable of driving a single-ended 50-Ω load without any need of external components. The TRF370333 and TRF370315 devices have different common-mode voltage ratings at the I/Q baseband inputs. The TRF370315 requires a 1.5-V common-mode voltage, and the TRF370333 requires a 3.3-V common-mode voltage.

75-dBc Single-Carrier WCDMA ACPR at –11-dBm Channel Power
Low Noise Floor: –163 dBm/Hz
OIP3 of 23 dBm
P1dB of 9 dBm
Unadjusted Carrier Feedthrough of –40 dBm
Unadjusted Side-Band Suppression of –40 dBc
Single Supply: 4.5 V–5.5 V Operation
Silicon Germanium Technology
TRF370333 With 3.3-V CM at I, Q Baseband Inputs
TRF370315 With 1.5-V CM at I, Q Baseband Inputs
APPLICATIONS
- Cellular Base Transceiver Station Transmit Channel
- CDMA: IS95, UMTS, CDMA2000, TD-SCDMA
- TDMA: GSM, IS-136, EDGE/UWC-136
- Wireless Local Loop
- Wireless MAN Wideband Transceivers

All other trademarks are the property of their respective owners

Frequency (min) (MHz)	350
Frequency (max) (MHz)	4000
I/Q input common-mode voltage (typ) (V)	1.5
PLL/VCO	No
P1dB (typ) (dBm)	9
OIP3 (typ) (dBm)	23
Noise floor (typ) (dBm/Hz)	-163
Unadjusted carrier suppression (typ) (dBm)	-40
Unadjusted sideband suppression (typ) (dBc)	-40
Rating	Catalog
Operating temperature range (°C)	-40 to 85
