Описание

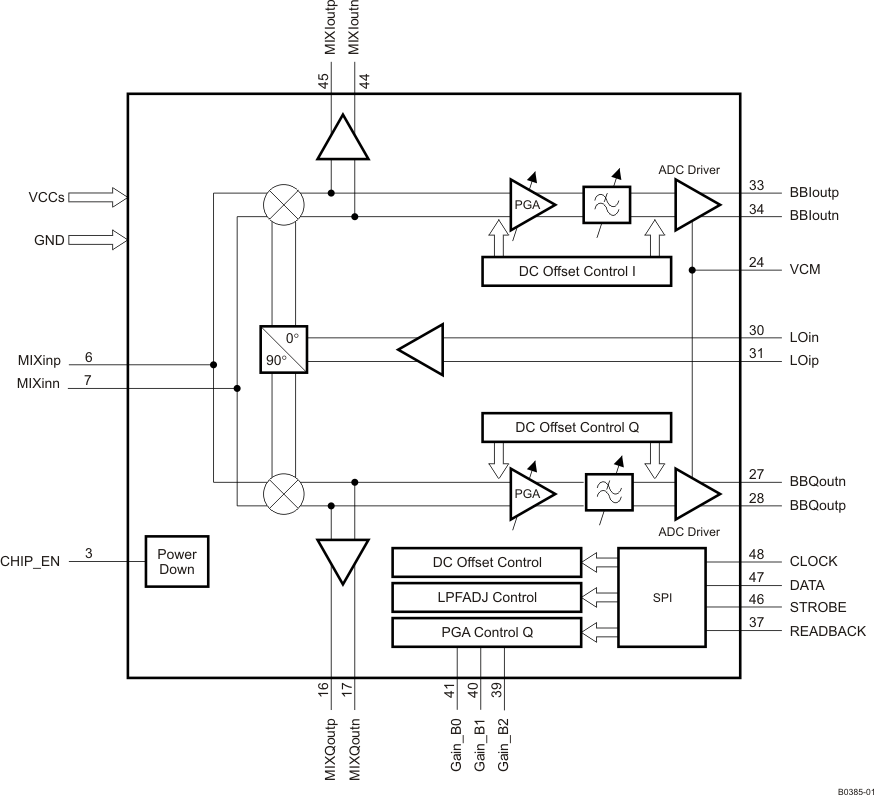

The TRF371135 is a highly linear and integrated direct-conversion quadrature demodulator. The TRF371135 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output signal level without the need for external variable-gain (attenuator) devices. The TRF371135 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm QFN package, the TRF371135 provides the smallest and most integrated receiver solution available for high-performance equipment.

Frequency Range: 1700 MHz to 6000 MHz
Integrated Baseband Programmable-Gain Amplifier
On-Chip Programmable Baseband Filter
High Out-of-Band IP3: 22 dBm at 3550 MHz
High Out-of-Band IP2: 52 dBm at 3550 MHz
Hardware and Software Power Down
Three-Wire Serial Interface
Single Supply: 4.5-V to 5.5-V Operation
Silicon Germanium Technology
APPLICATIONS
- Multicarrier Wireless Infrastructure
- WiMAX
- High-Linearity Direct-Downconversion Receiver
- LTE (Long Term Evolution)

All trademarks are the property of their respective owners.

BB BW LP filter (min) (MHz)	0.7
BB BW LP filter (max) (MHz)	15
Supply voltage (typ) (V)	5
IIP3 (typ) (dBm)	22
IIP2 (typ) (dBm)	52
Frequency range (typ)	1.7 - 6.0 GHz
Rating	Catalog
Operating temperature range (°C)	-40 to 85
