Описание

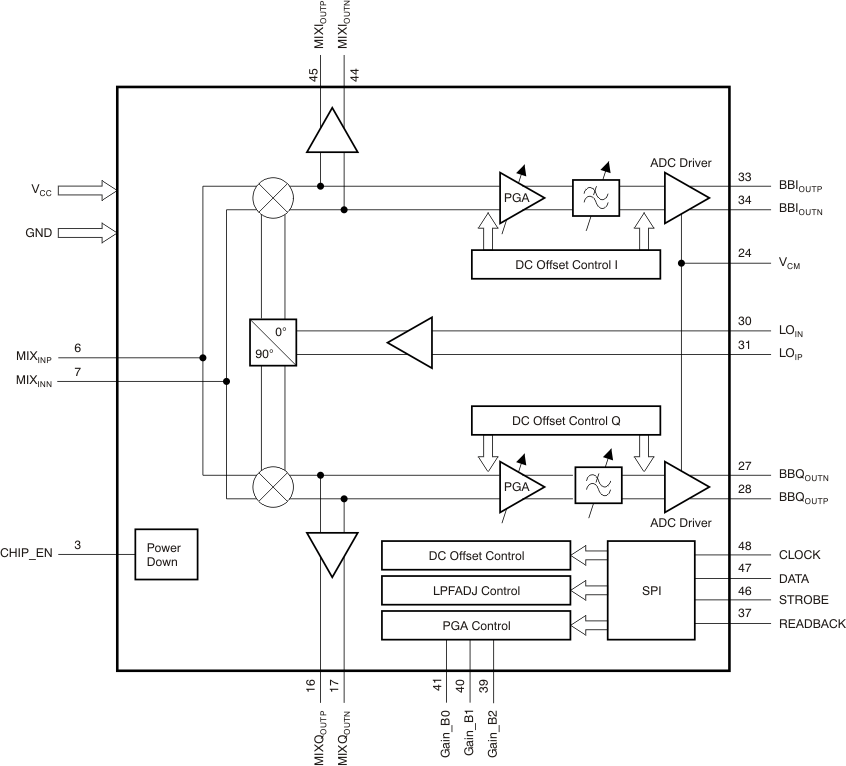

The TRF371109 is a highly linear direct-conversion quadrature receiver. The TRF371109 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable gain amplifiers allow adjustment of the output signal level without the need for external variable gain (attenuator) devices. The TRF371109 integrates programmable baseband low-pass filters that attenuate nearby interference, eliminating the need for an external baseband filter. Housed in a 7-mm × 7-mm VQFN package, the TRF371109 provides the smallest and most integrated receiver solution available for high-performance equipment.

Frequency Range: 300 MHz to 1700 MHz
Integrated Baseband Programmable Gain Amplifier
On-Chip Programmable Baseband Filter
High Cascaded IP3: 27 dBm at 900 MHz
High IP2: 68 dBm at 900 MHz
Hardware and Software Power Down
Three-Wire Serial Interface
Single Supply: 4.5-V to 5.5-V Operation
Silicon Germanium Technology
APPLICATIONS
- Multicarrier Wireless Infrastructure
- WiMAX
- High-Linearity Direct-Downconversion Receiver
- LTE (Long Term Evolution)

All other trademarks are the property of their respective owners.

BB BW LP filter (min) (MHz)	0.7
BB BW LP filter (max) (MHz)	15
Supply voltage (typ) (V)	5
IIP3 (typ) (dBm)	27
IIP2 (typ) (dBm)	68
Frequency range (typ)	0.3 to 1.7 GHz
Rating	Catalog
Operating temperature range (°C)	-40 to 85
