Описание

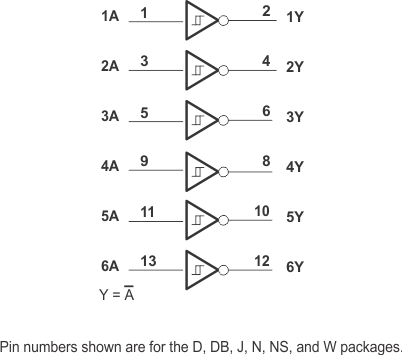

Each circuit in SNx414 and SNx4LS14 functions as an inverter. However, because of the Schmitt-Trigger action, they have different input threshold levels for positive-going (VT+) and negative-going (VT–) signals. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals.

Operation From Very Slow Edges
Improved Line-Receiving Characteristics
High Noise Immunity

Technology family	LS
Supply voltage (min) (V)	4.5
Supply voltage (max) (V)	5.5
Number of channels	6
IOL (max) (mA)	8
IOH (max) (mA)	-0.4
Supply current (max) (µA)	60000
Input type	Schmitt-Trigger
Output type	Push-Pull
Features	High speed (tpd 10-50ns)
Rating	Space
Operating temperature range (°C)	-55 to 125
