Описание

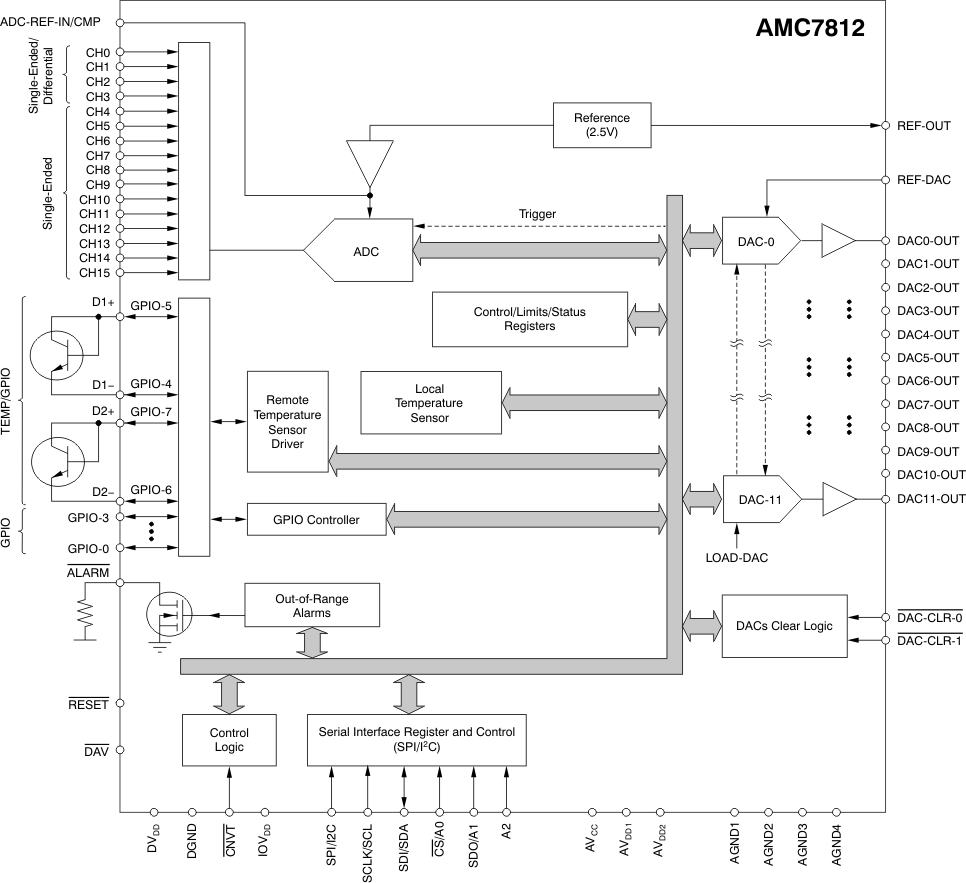

The AMC7812 is a complete analog monitoring and control solution that includes a 16-channel, 12-bit analog-to-digital converter (ADC), twelve 12-bit digital-to-analog converters (DACs), eight GPIOs, and two remote/one local temperature sensor channels. The AMC7812 has an internal reference of +2.5V that can configure the DAC output voltage to a range of either 0V to +5V or 0V to +12.5V. An external reference can be used as well. Typical power dissipation is 95mW. The AMC7812 is ideal for multichannel applications where board space, size, and low power are critical. The AMC7812 is available in either a 64-lead QFN or HTQFP-64 PowerPAD™ package and is fully specified over the –40°C to +105°C temperature range. For applications that require a different channel count, additional features, or converter resolutions, Texas Instruments offers a complete family of analog monitor and control (AMC) products. Visit http://www.ti.com/amc for more information.

12, 12-Bit DACs with Programmable Outputs:
- 0V to 5V
- 0V to 12.5V
DAC Shutdown to User-Defined Level
12-Bit, 500kSPS ADC with 16 Inputs:
- 16 Single-Ended or
- Two Differential + 12 Single-Ended
Two Remote Temperature Sensors:
- –40°C to +150°C, ±2°C Accuracy
One Internal Temperature Sensor:
- –40°C to +125°C, ±2.5°C Accuracy
Input Out-of-Range Alarms
2.5V Internal Reference
Eight General-Purpose Input/Outputs
Configurable I²C-Compatible/SPI™ Interface with 5V/3V Logic
Power-Down Mode
Wide Temperature Range:
- –40°C to +105°C
Small Packages: 9mm x 9mm QFN-64, and 10mm x 10mm HTQFP-64

Resolution (Bits)	12
Number of DAC channels	12
Interface type	I2C, SPI
Output type	Buffered Voltage
Settling time (µs)	3
Features	GPIO, Temp Sensor
Reference type	Ext, Int
Architecture	SAR
Rating	Catalog
Sample/update rate (Msps)	0.333
Power consumption (typ) (mW)	95
Operating temperature range (°C)	-40 to 105
