Описание

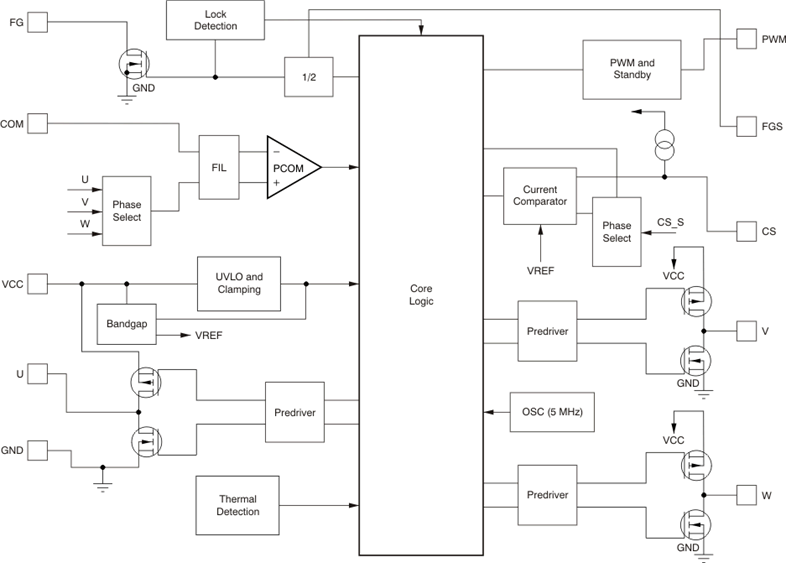

DRV10866 is a 3- phase, sensorless motor driver with integrated power MOSFETs with drive current capability up to 680-mA peak. DRV10866 is specifically designed for low noise and low external component count fan motor drive applications. DRV10866 has built-in overcurrent protection with no external current sense resistor needed. The synchronous rectification mode of operation achieves increased efficiency for motor driver applications. DRV10866 outputs either FG or 1⁄2 FG to indicate motor speed with open-drain output. A 150° sensorless BEMF control scheme is implemented for a 3-phase motor. DRV10866 is available in the thermally efficient 10-pin, 3-mm × 3-mm × 0.75-mm SON (DSC) package. The operating temperature is specified from 40°C to 125°C.

Input Voltage Range: 1.65 V to 5.5 V
Six Integrated MOSFETS With 680-mA Peak
Output Current
Ultralow Quiescent Current: 5 µA (Typical) in
Standby Mode
Total Driver H+L R_DSOn 900 mΩ
Sensorless Proprietary BMEF Control Scheme
150° Commutation
Synchronous Rectification PWM Operation
Selectable FG and 1⁄2 FG Open-Drain Output
PWM_IN Input from 15 kHz to 50 kHz
Lock Detection
Voltage Surge Protection
UVLO
Thermal Shutdown

Rating	Catalog
Architecture	Integrated FET
Control topology	Sensorless, Trapezoidal
Control interface	1xPWM
Vs (min) (V)	1.65
Vs ABS (max) (V)	6
Features	Integrated FETs, Integrated Motor Control, Tach/FG Feedback
Operating temperature range (°C)	-40 to 85
