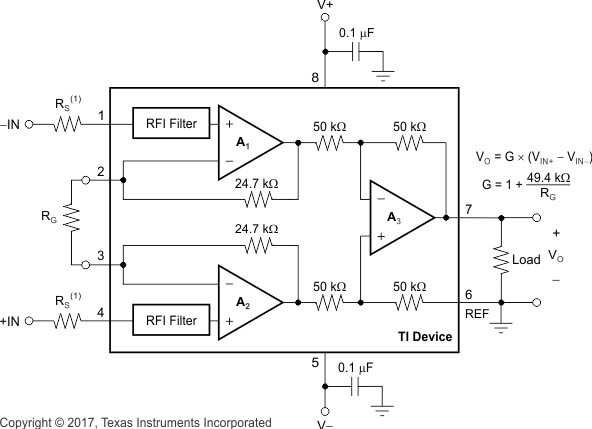

The INA826S device is a low-cost instrumentation amplifier that offers extremely low power consumption along with shutdown and operates over a very wide single- or dual-supply range. A single external resistor sets any gain from 1 to 1000. The device offers excellent stability over temperature, even at G > 1, as a result of the low gain drift of only 35 ppm/°C (max).The INA826S is optimized to provide excellent common-mode rejection ratio of over 100 dB (G = 10) over frequencies up to 5 kHz. At G = 1, the common-mode rejection ratio exceeds 84 dB across the full input common-mode range from the negative supply all the way up to 1 V of the positive supply. Using a rail-to-rail output, the INA826S is well-suited for low voltage operation from a 3-V single supply as well as dual supplies up to ±18 V.Shutdown pins are provided to reduce supply current below 2 µA. Additional circuitry protects the inputs against overvoltage of up to ±40 V beyond the power supplies by limiting the input currents to less than 8 mA.The INA826S is available in a 10-pin, 3-mm × 3-mm VSON surface-mount package. The INA826S is specified over the –40°C to +125°C temperature range.

Input Common-Mode Range: Includes V–
Common-Mode Rejection:
- 104 dB (Min, G = 10)
- 100 dB (Min at 5 kHz, G = 10)
Power-Supply Rejection: 100 dB (Min, G = 1)
Low Offset Voltage: 150 µV, max
Gain Drift: 1 ppm/°C (G = 1), 35 ppm/°C (G > 1)
Noise: 18 nV/√Hz, G ≥ 100
Bandwidth: 1 MHz (G = 1), 60 kHz (G = 100)
Inputs Protected up to ±40 V
Rail-to-Rail Output
Supply Current: 200 µA
- Shutdown Current: 2 µA
Supply Range:
- Single Supply: 3 V to 36 V
- Dual Supply: ±1.5 V to ±18 V
Specified Temperature Range:
–40°C to +125°C
Packages: 3-mm × 3-mm VSON

Number of channels	1
Vs (max) (V)	36
Vs (min) (V)	3
Input offset (±) (max) (µV)	150
Voltage gain (min) (V/V)	1
Voltage gain (max) (V/V)	1000
Noise at 1 kHz (typ) (nV√Hz)	18
Features	Cost Optimized, Overvoltage protection, Shutdown, Small Size
CMRR (min) (dB)	120
Input offset drift (±) (max) (V/°C)	0.000002
Input bias current (±) (max) (nA)	65
Iq (typ) (mA)	0.2
Bandwidth at min gain (typ) (MHz)	1
Gain error (±) (max) (%)	0.15
Operating temperature range (°C)	-40 to 125
Rating	Catalog
Type	Resistor
Gain nonlinearity (±) (max) (%)	0.002
Output swing headroom (to negative supply) (typ) (V)	0.1
Output swing headroom (to positive supply) (typ) (V)	-0.15
Input common mode headroom (to negative supply) (typ) (V)	0
Input common mode headroom (to positive supply) (typ) (V)	-1
Noise at 0.1 Hz to 10 Hz (typ) (µVPP)	0.52
