Описание

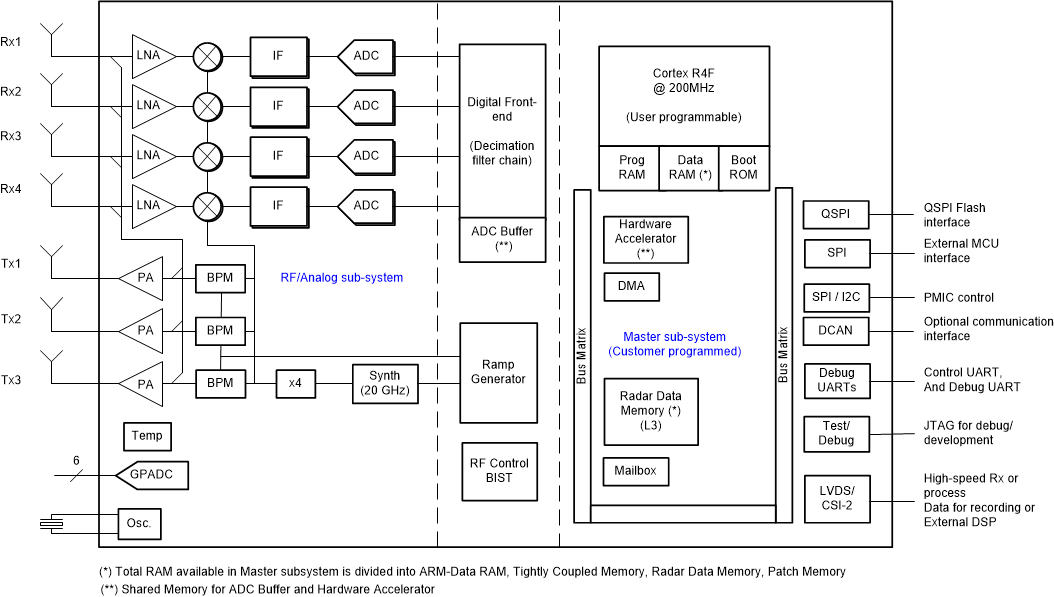

The IWR1443 device is an integrated single-chip mmWave sensor based on FMCW radar technology capable of operation in the 76- to 81-GHz band with up to 4 GHz continuous chirp. The device is built with TI’s low-power 45-nm RFCMOS process, and this solution enables unprecedented levels of integration in an extremely small form factor. The IWR1443 is an ideal solution for low-power, self-monitored, ultra-accurate radar systems in the industrial applications such as building automation, factory automation, drones, material handling, traffic monitoring, and surveillance.The IWR1443 device is a self-contained, single-chip solution that simplifies the implementation of mmWave sensors in the band of 76 to 81 GHz. The IWR1443 includes a monolithic implementation of a 3TX, 4RX system with built-in PLL and A2D converters. The device includes fully configurable hardware accelerator that supports complex FFT and CFAR detection. Additionally, the device includes two ARM R4F-based processor subsystems: one processor subsystem is for master control, and additional algorithms; a second processor subsystem is responsible for front-end configuration, control, and calibration. Simple programming model changes can enable a wide variety of sensor implementation with the possibility of dynamic reconfiguration for implementing a multimode sensor. Additionally, the device is provided as a complete platform solution including reference hardware design, software drivers, sample configurations, API guide, training, and user documentation.

FMCW Transceiver
- Integrated PLL, Transmitter, Receiver, Baseband, and A2D
- 76- to 81-GHz Coverage With 4-GHz Continuous Bandwidth
- Four Receive Channels
- Three Transmit Channels (Two Can be Used Simultaneously)
- Ultra-Accurate Chirp Engine Based on Fractional-N PLL
- TX Power: 12 dBm
- RX Noise Figure:
  - 14 dB (76 to 77 GHz)
  - 15 dB (77 to 81 GHz)
- Phase Noise at 1 MHz:
  - –95 dBc/Hz (76 to 77 GHz)
  - –93 dBc/Hz (77 to 81 GHz)
Built-in Calibration and Self-Test
- ARM^® Cortex^®-R4F-Based Radio Control System
- Built-in Firmware (ROM)
- Self-calibrating System Across Frequency and Temperature
On-Chip Programmable Core for Embedded User Application
- Integrated Cortex®-R4F Microcontroller Clocked at 200 MHz
- On-Chip Bootloader Supports Autonomous Mode (Loading User Application From QSPI Flash Memory)
- Integrated Peripherals
  - Internal Memories With ECC
  - Radar Hardware Accelerator (FFT, Log-magnitude Computations, and others)
  - Integrated Timers (Watch Dog and up to Four 32-Bit or Two 64-Bit Timers)
  - I2C (Master and Slave Modes Supported)
  - Two SPI Ports
  - CAN Port
  - Up to Six General-Purpose ADC Ports
High-Speed Data Interface to Support Distributed Applications
Host Interface
- Control Interface With External Processor Over SPI
- Data Interface With External Processor Over MIPI D-PHY and CSI2 V1.1
- Interrupts for Fault Reporting
IWR1443 Advanced Features
- Embedded Self-monitoring With No Host Processor Involvement
- Complex Baseband Architecture
- Embedded Interference Detection Capability
Power Management
- Built-in LDO Network for Enhanced PSRR
- I/Os Support Dual Voltage 3.3 V/1.8 V
Clock Source
- Supports External Oscillator at 40 MHz
- Supports Externally Driven Clock (Square/Sine) at 40 MHz
Easy Hardware Design
- 0.65-mm Pitch, 161-Pin 10.4 mm × 10.4 mm Flip Chip BGA Package for Easy Assembly and Low-Cost PCB Design
- Small Solution Size
Operating Conditions
- Junction Temp Range: –40°C to 105°C

Frequency range	76 - 81 GHz
Number of receivers	4
Number of transmitters	3
ADC sampling rate (ksps)	375000
TX power (dBm)	12
Arm CPU	ARM R4F @ 200MHz
Coprocessors	Radar Hardware Accelerator
Interface type	CAN, CSI-2, I2C, LVDS, QSPI, SPI, UART
RAM (kByte)	576
Operating temperature range (°C)	-40 to 105
Power supply solution	LP87702-Q1, LP87745-Q1
Rating	Catalog
