Описание

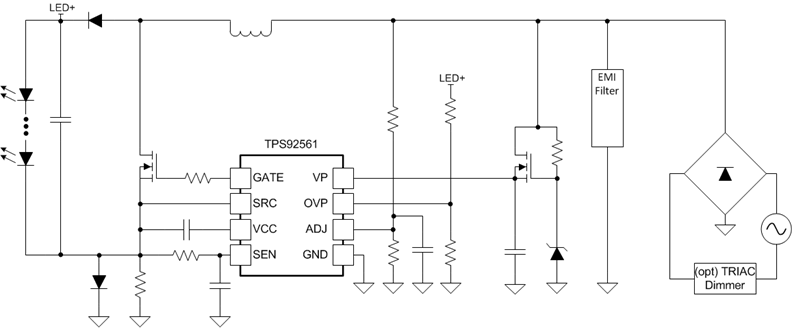

The TPS92561 device is a boost controller for LED lighting applications utilizing high-voltage, low-current LEDs. A boost converter approach to lighting applications allows the creation of the smallest volume converter possible and enables high efficiencies beyond 90%. The device incorporates a current sense comparator with a fixed offset enabling a simple hysteretic control scheme free of the loop compensation issues typically associated with a boost converter. The integrated OVP and VCC regulator further simplify the design procedure and reduce external component count.

Simple Hysteretic Control
Compact Solution and Simple Bill Of Materials
Naturally Dimmable TRIAC and Reverse Phase
Dimmers
Implements LED Drive Circuits Capable of
High >90% Efficiency, >0.9 Power Factor, and
<20% THD
Programmable Output Over-voltage Protection
Overtemperature Shutdown
VCC Undervoltage Lockout
8-Pin VSSOP (MSOP) With Exposed Pad

Input voltage type	AC/DC, DC/DC
Topology	Boost, Boost Controller
Vin (min) (V)	6.5
Vin (max) (V)	42
Vout (max) (V)	400
Vout (min) (V)	5
Iout (max) (A)	2
Iq (typ) (mA)	1.4
Features	Adjustable Switch Frequency, Thermal shutdown
Operating temperature range (°C)	-40 to 125
Dimming method	Forward Phase (Triac), Reverse Phase
Number of channels	1
Rating	Catalog
