Описание

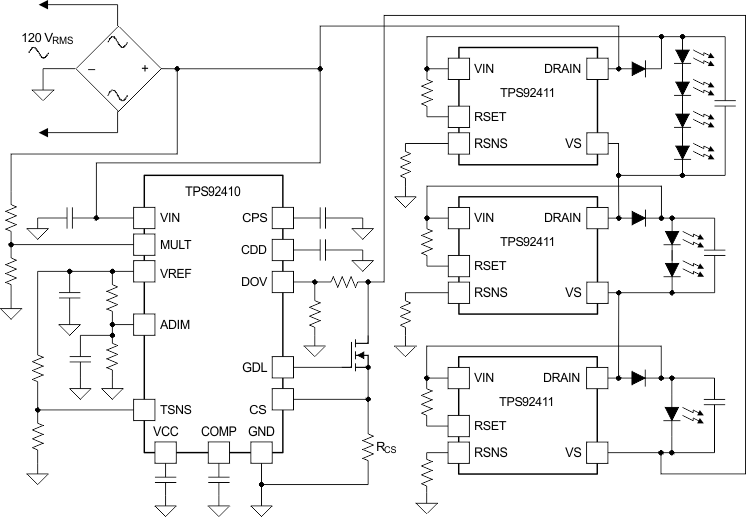

The TPS92410 is an advanced linear driver with high voltage start-up intended for use in low power, offline LED lighting applications. It can be used to regulate the average LED current through LEDs in conjunction with the TPS92411 direct drive switch. The TPS92410 features a reference voltage that can be used to set the current level as well as the thermal foldback threshold. A multiplier is included to obtain excellent power factor while maintaining good line regulation. Other features include under-voltage lockout, over-voltage protection, forward phase dimmer detection with change to constant current mode, thermal foldback, and thermal shutdown.For all available packages, see the orderable addendum at

Multiplier for Good PFC, Line Regulation, and Low THD
V_IN Range From 9.5 V to 450 V
Compatible with Phase Dimmers
Analog Dimming Input with LED Turn-Off
Programmable Overvoltage Protection
Precision 3-V Reference
Thermal Foldback
Thermal Shutdown
No Inductor Required
13 Pin, High-Voltage, SOIC Package

Input voltage type	AC Linear
Topology	AC Direct-Drive, Current Sink
Vin (min) (V)	9.5
Vin (max) (V)	450
Vout (max) (V)	450
Vout (min) (V)	30
Iout (max) (A)	1
Iq (typ) (mA)	0.305
Features	Thermal Foldback, Thermal shutdown
Operating temperature range (°C)	-40 to 150
Dimming method	Analog, Forward Phase (Triac), Reverse Phase
Number of channels	1
Rating	Catalog
