TPS2419 Texas instruments

TPS2419

Уточнить цену

TPS2419

Уточнить цену

СРАВНИТЬ

В СРАВНЕНИИ

Уточнить цену

Описание

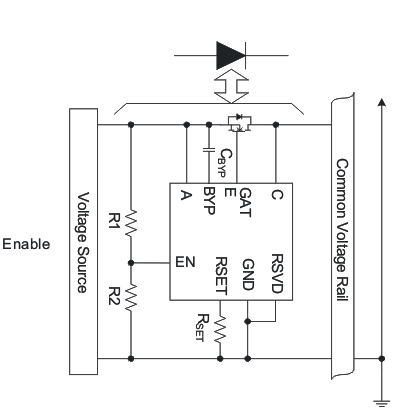

The TPS2419 controller, in conjunction with an external N-channel MOSFET, provides the reverse current protection of an ORing diode with the efficiency of a MOSFET. The TPS2419 can be used to combine multiple power supplies to a common bus in an N+1 configuration, or to combine redundant input power buses. Applications for the TPS2419 include a wide range of systems including servers and telecom. These applications often have either N+1 redundant power supplies, redundant power buses, or both. Redundant power sources must have the equivalent of a diode OR to prevent reverse current during faults and hotplug. Accurate voltage sensing and a programmable turn-off threshold allows operation to be tailored for a wide range of implementations and bus characteristics. The TPS2419 brings out an enable pin which allows the system to force the MOSFET off under light-load, high noise conditions.

Control External FET for N+1 and ORing
Controls Buses From 3 V to 16.5 V
External Enable
N-Channel MOSFETControl
Rapid Device Turnoff Protects Bus Integrity
Programmable Turn-Off Threshold
Soft Turn on Reduces Bus Transients
Industrial Temperature Range: –40°C to 85°C
8-Pin TSSOP and SOIC Packages
APPLICATIONS
- N+1 Power Supplies
- Server Blades
- Telecom Systems
- High Availability Power Modules

Vin (min) (V)	0.8
Vin (max) (V)	16.5
Number of channels	1
Features	Gate ON/OFF control, Reverse current blocking
Iq (typ) (mA)	1.2
Iq (max) (mA)	7
FET	External single FET
IGate source (typ) (µA)	290
IGate source (max) (µA)	350
IGate sink (typ) (mA)	5
IGate pulsed (typ) (A)	2.35
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Imax (A)	250
VGS (max) (V)	11.5
Device type	ORing controller
Product type	ORing controller
