Описание

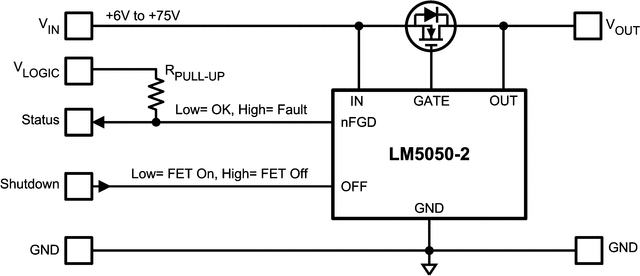

The LM5050-2 High Side OR-ing FET Controller operates in conjunction with an external MOSFET as an ideal diode rectifier when connected in series with a power source. This OR-ing controller allows MOSFETs to replace diode rectifiers in power distribution networks thus reducing both power loss and voltage drops. The LM5050-2 controller provides charge pump gate drive for an external N-Channel MOSFET and a fast response comparator to turn off the FET when current flows in the reverse direction. The LM5050-2 can connect power supplies ranging from +6V to +75V and can withstand transients up to +100V. The LM5050-2 also provides a FET test diagnostic mode which allows the system controller to test for shorted MOSFETs.

Wide Operating Input Voltage Range: +6V to +75V
+100 Volt Transient Capability
Charge Pump Gate Driver for External N-Channel MOSFET
MOSFET Diagnostic Test Mode
Fast 50ns Response to Current Reversal
2A Peak Gate Turn-off Current
Minimum V_DS Clamp for Faster Turn-off
Package: SOT-6 (Thin SOT23-6)

All trademarks are the property of their respective owners.

Vin (min) (V)	6
Vin (max) (V)	75
Number of channels	1
Features	FET test, Linear control, Reverse current blocking
Iq (typ) (mA)	0.4
Iq (max) (mA)	0.72
FET	External single FET
IGate source (typ) (µA)	32
IGate source (max) (µA)	45
IGate sink (typ) (mA)	2.8
IGate pulsed (typ) (A)	2.8
Operating temperature range (°C)	-40 to 125
VSense reverse (typ) (mV)	-41, -28
Design support	EVM, Reference Design, Simulation Model
Rating	Catalog
Imax (A)	250
VGS (max) (V)	14.7
Shutdown current (ISD) (mA) (A)	0.1
Device type	ORing controller
Product type	ORing controller
