Описание

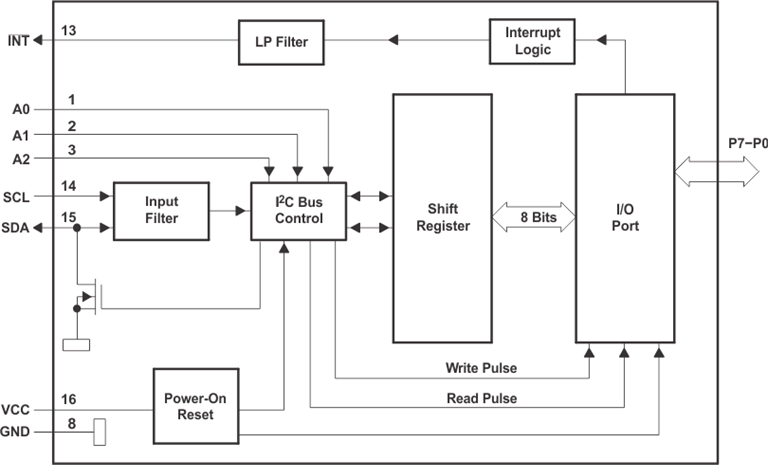

The TCA9554A is a 16-pin device that provides 8 bits of general purpose parallel input-output (I/O) expansion for the two-line bidirectional I2C bus (or SMBus) protocol. The device can operate with a power supply voltage ranging from 1.65 V to 5.5 V. The device supports both 100-kHz (Standard-mode) and 400-kHz (Fast-mode) clock frequencies. I/O expanders such as the TCA9554A provide a simple solution when additional I/Os are needed for switches, sensors, push-buttons, LEDs, fans, and other similar devices. The features of the TCA9554A include an interrupt that is generated on the INT pin whenever an input port changes state. The A0, A1, and A2 hardware selectable address pins allow up to eight TCA9554A devices on the same I2C bus. The device can also be reset to its default sate by cycling the power supply and causing a power-on reset.

I²C to Parallel Port Expander
Open-Drain Active-Low Interrupt Output
Operating Power-Supply Voltage Range of 1.65 V to 5.5 V
5-V Tolerant I/O Ports
400-kHz Fast I²C Bus
Three Hardware Address Pins Allow up to Eight Devices on the I²C/SMBus
Input and Output Configuration Register
Polarity Inversion Register
Internal Power-On Reset
Low Standby Current Consumption
Power-Up With All Channels Configured as Inputs
No Glitch on Power Up
Noise Filter on SCL/SDA Inputs
Latched Outputs With High-Current Drive Maximum Capability for Directly Driving LEDs
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

Number of I/Os	8
Features	Configuration registers, Interrupt pin
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Addresses	8
Rating	Catalog
Frequency (max) (MHz)	0.4
Operating temperature range (°C)	-40 to 85
