Описание

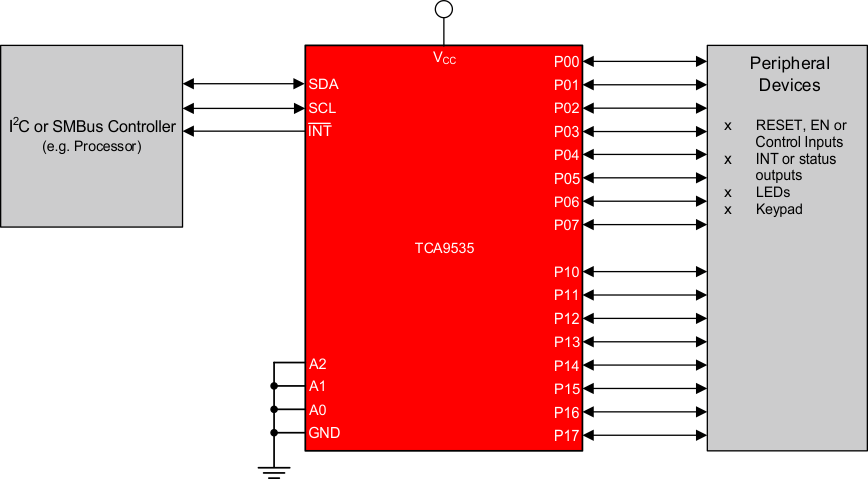

The TCA9535 is a 24-pin device that provides 16 bits of general purpose parallel input and output (I/O) expansion for the two-line bidirectional I2C bus or (SMBus) protocol. The device can operate with a power supply voltage ranging from 1.65 V to 5.5 V.The TCA9535 consists of two 8-bit Configuration (input or output selection), Input Port, Output Port, and Polarity Inversion (active-high or active-low operation) registers. At power on, the I/Os are configured as inputs. The system controller can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits.The TCA9535 is identical to the TCA9555, except that the TCA9535 does not include the internal I/O pull-up resistor, which requires pull-ups and pull-downs on unused I/O pins when configured as an input and undriven.

I²C to Parallel port expander
Wide power supply voltage range of 1.65 V to 5 V
Low standby-current consumption
Open-drain active-low interrupt output
5-V tolerant I/O ports
400-kHz Fast I²C bus
Polarity inversion register
Address by three hardware address pins for use of up to eight devices
Latched outputs with high-current drive capability for directly driving LEDs
Latch-up performance exceeds 100 mA per JESD 78, class II
ESD protection exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

Number of I/Os	16
Features	Configuration registers, Interrupt pin
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Addresses	8
Rating	Catalog
Frequency (max) (MHz)	0.4
Operating temperature range (°C)	-40 to 85
