OPA355-Q1 Texas instruments

OPA355-Q1
Уточнить цену
OPA355-Q1
Уточнить цену
СРАВНИТЬ
В СРАВНЕНИИ
Уточнить цену

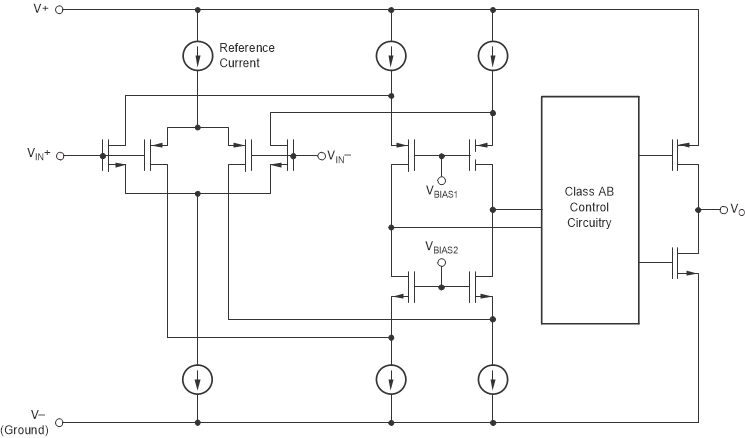

The OPA355-Q1 device is a high-speed, voltage-feedback CMOS operational amplifier designed for applications requiring wide bandwidth. The OPA355-Q1 device is unity-gain stable and can drive large output currents. In addition, the OPA355-Q1 device has a digital shutdown (enable) function. This feature provides power saving during idle periods and places the output in a high-impedance state to support output multiplexing. The differential gain is 0.02% and the differential phase is 0.05°. The quiescent current is 8.3 mA per channel.The OPA355-Q1 device is optimized for operation on single supply or dual supplies as low as 2.5 V (±1.25 V) and up to 5.5 V (±2.75 V). The common-mode input range for the OPA355-Q1 device extends 100 mV below ground and up to 1.5 V from V+. The output swing is within 100 mV of the rails, supporting wide dynamic range.The OPA355-Q1 device is available in a single SOT-23-6 package and is specified over the extended –40°C to +125°C temperature range.
  • Qualified for Automotive Applications
  • AEC-Q100 Qualified With the Following Results
    • Device Temperature Grade 1: –40°C to +125°C Ambient Operating Temperature
    • Device HBM ESD Classification Level 2
    • Device CDM ESD Classification Level C4B
  • Unity-Gain Bandwidth: 450 MHz
  • Wide Bandwidth: 200 MHz GBW
  • High Slew Rate: 360 V/µs
  • Low Noise: 5.8 nV/√Hz
  • Excellent Video Performance:
    • Differential Gain: 0.02%
    • Differential Phase: 0.05° (0.1 dB)
    • Gain Flatness: 75 MHz
  • Input Range Includes Ground
  • Rail-to-Rail Output (Within 100 mV)
  • Low Input Bias Current: 3 pA
  • Low Shutdown Current: 3.4 µA
  • Enable and Disable Time: 100 ns and 30 ns
  • Thermal Shutdown
  • Single-Supply Operating Range: 2.5 V to 5.5 V
  • MicroSIZE Packages
Architecture FET / CMOS Input, Voltage FB
Number of channels 1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) 2.7
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) 5.5
GBW (typ) (MHz) 200
BW at Acl (MHz) 200
Acl, min spec gain (V/V) 1
Slew rate (typ) (V/µs) 300
Vn at flatband (typ) (nV√Hz) 5.8
Vn at 1 kHz (typ) (nV√Hz) 5.8
Iq per channel (typ) (mA) 8.3
Vos (offset voltage at 25°C) (max) (mV) 9
Rail-to-rail In to V-, Out
Features Shutdown
Rating Automotive
Operating temperature range (°C) -40 to 125
CMRR (typ) (dB) 80
Input bias current (max) (pA) 50
Offset drift (typ) (µV/°C) 7
Iout (typ) (mA) 100
2nd harmonic (dBc) 81
3rd harmonic (dBc) 93
Frequency of harmonic distortion measurement (MHz) 1
