Описание

The OPA2836-Q1 device is a dual-channel, ultra-low power, rail-to-rail output, negative-rail input, voltage-feedback operational amplifier designed to operate over a power-supply range of 2.5 V to 5.5 V (single supply), or ±1.25 V to ±2.75 V (dual supply). Consuming only 1 mA per channel with a unity-gain bandwidth of 205 MHz, this amplifier sets an industry-leading, power-to-performance ratio for rail-to-rail amplifiers. For battery-powered, portable applications where power is a key importance, the low-power consumption and high-frequency performance of the OPA2836-Q1 offers designers performance-versus-power that is not attainable in other devices. The OPA2836-Q1 is characterized for operation over the extended industrial temperature range of –40°C to +125°C.

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
- Device HBM Classification Level 2
- Device CDM Classification Level C6
Low Power:
- Supply Voltage: 2.5 V to 5.5 V
- Quiescent Current: 1 mA (Typ)
- Power-Down Mode: 0.5 µA Typ)
Bandwidth: 205 MHz
Slew Rate: 560 V/µs
Rise Time: 3 ns (2 V_STEP)
Settling Time (0.1%): 22 ns (2 V_STEP)
Overdrive Recovery Time: 60 ns
SNR: 0.00013% (–117.6 dBc) at 1 kHz (1 V_RMS)
THD: 0.00003% (–130 dBc) at 1 kHz (1 V_RMS)

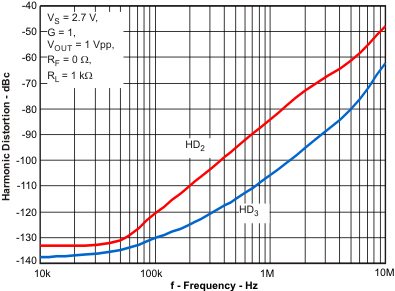

HD₂, HD₃: –85 dBc, –105 dBc at 1 MHz (2 V_PP)
Input Voltage Noise: 4.6 nV/√Hz (f = 100 kHz)
Input Offset Voltage: 65 µV (±400-µV Max)
CMRR: 116 dB
Output Current Drive: 50 mA
RRO: Rail-to-Rail Output
Input Voltage Range: –0.2 V to +3.9 V
(5-V Supply)

Architecture	Voltage FB
Number of channels	2
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	2.5
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	5.5
GBW (typ) (MHz)	110
BW at Acl (MHz)	205
Acl, min spec gain (V/V)	1
Slew rate (typ) (V/µs)	560
Vn at flatband (typ) (nV√Hz)	4.6
Vn at 1 kHz (typ) (nV√Hz)	5
Iq per channel (typ) (mA)	1
Vos (offset voltage at 25°C) (max) (mV)	0.4
Rail-to-rail	In to V-, Out
Rating	Automotive
Operating temperature range (°C)	-40 to 125
CMRR (typ) (dB)	116
Input bias current (max) (pA)	1000000
Offset drift (typ) (µV/°C)	1.1
Iout (typ) (mA)	50
2nd harmonic (dBc)	85
3rd harmonic (dBc)	79
Frequency of harmonic distortion measurement (MHz)	1
