Описание

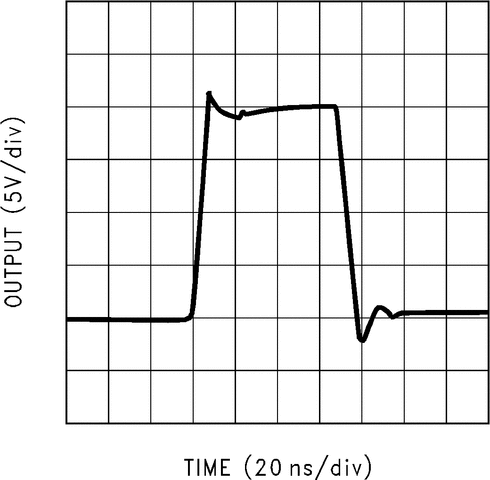

The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier; yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or −1. It provides a very high slew rate at 4100V/μs and a wide unity-gain bandwidth of 200 MHz while consuming only 6.5 mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171 can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The LM7171 offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171 is specified for ±5V operation for portable applications. The LM7171 is built on Texas Instruments's advanced VIP III (Vertically integrated PNP) complementary bipolar process.

(Typical Unless Otherwise Noted)
Easy-To-Use Voltage Feedback Topology
Very High Slew Rate: 2400V/μs
Wide Unity-Gain Bandwidth: 200 MHz
−3 dB Frequency @ A_V = +2: 220 MHz
Low Supply Current: 6.5 mA
High Open Loop Gain: 85 dB
High Output Current: 100 mA
Specified for ±15V and ±5V Operation
Available with Radiation Guarantee
- Total Ionizing Dose 300 Krad(Si)
- ELDRS Free 300 Krad(Si)

All trademarks are the property of their respective owners.

Architecture	Voltage FB
Number of channels	1
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V)	5.5
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V)	36
GBW (typ) (MHz)	200
BW at Acl (MHz)	220
Acl, min spec gain (V/V)	2
Slew rate (typ) (V/µs)	4100
Vn at flatband (typ) (nV√Hz)	14
Vn at 1 kHz (typ) (nV√Hz)	14
Iq per channel (typ) (mA)	6.5
Vos (offset voltage at 25°C) (max) (mV)	1
Rail-to-rail	No
Features	Decompensated
Rating	Space
Operating temperature range (°C)	-55 to 125
CMRR (typ) (dB)	105
Input bias current (max) (pA)	10000000
Offset drift (typ) (µV/°C)	35
Iout (typ) (mA)	100
2nd harmonic (dBc)	75
3rd harmonic (dBc)	55
Frequency of harmonic distortion measurement (MHz)	5
Radiation, TID (typ) (krad)	300
Radiation, SEL (MeV·cm2/mg)	Bipolar
