Описание

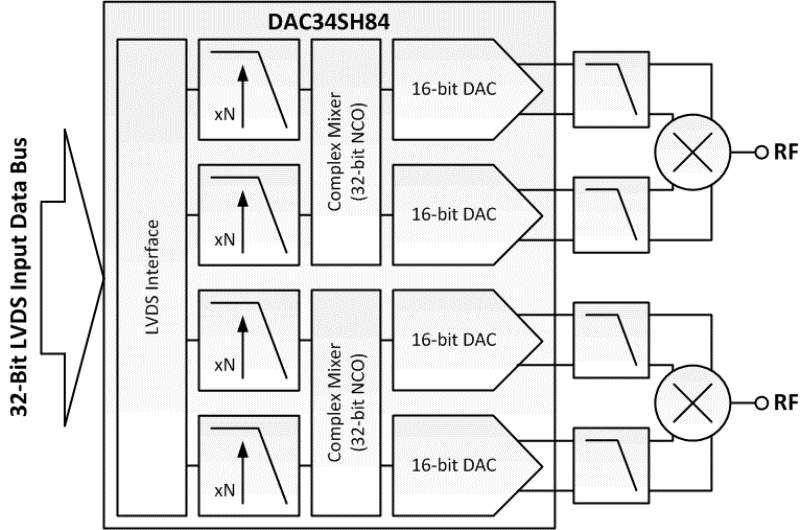

The DAC34SH84 is a very low-power, high-dynamic range, quad-channel, 16-bit digital-to-analog converter (DAC) with a sample rate as high as 1.5 GSPS. The device includes features that simplify the design of complex transmit architectures: 2× to 16× digital interpolation filters with over 90 dB of stop-band attenuation simplify the data interface and reconstruction filters. Independent complex mixers allow flexible carrier placement. A high-performance low-jitter clock multiplier simplifies clocking of the device without significant impact on the dynamic range. The digital quadrature modulator correction (QMC) enables complete IQ compensation for gain, offset and phase between channels in direct upconversion applications. Digital data is input to the device through a 32-bit wide LVDS data bus with on-chip termination. The wide bus allows the processing of high-bandwidth signals. The device includes a FIFO, data pattern checker, and parity test to ease the input interface. The interface also allows full synchronization of multiple devices. The device is characterized for operation over the entire industrial temperature range of –40°C to 85°C and is available in a 196-ball, 12-mm × 12-mm, 0.8-mm pitch NFBGA package. The DAC34SH84 low-power, high-bandwidth support, superior crosstalk, high dynamic range, and features are an ideal fit for next-generation communication systems.

Low Power: 1.8 W at 1.5 GSPS, Full Operating
Condition
Multi-DAC Synchronization
Selectable 2×, 4×, 8×, 16× Interpolation Filter
- Stop-Band Attenuation > 90 dBc
Flexible On-Chip Complex Mixing
- Two Independent Fine Mixers With 32-Bit
  NCOs
- Power-Saving Coarse Mixers: ±n × f_S/8
High-Performance, Low-Jitter Clock-Multiplying
PLL
Digital I and Q Correction
- Gain, Phase and Offset
Digital Inverse Sinc Filters
32-Bit DDR Flexible LVDS Input Data Bus
- 8-Sample Input FIFO
- Supports Data Rates up to 750 MSPS
- Data Pattern Checker
- Parity Check
Temperature Sensor
Differential Scalable Output: 10 mA to 30 mA
196-Ball, 12-mm × 12-mm NFBGA

Resolution (Bits)	16
Number of DAC channels	4
Interface type	DDR LVDS, Parallel LVDS
Sample/update rate (Msps)	1500
Features	Ultra High Speed
Rating	Catalog
Interpolation	16x, 1x, 2x, 4x, 8x
Power consumption (typ) (mW)	1448
SFDR (dB)	78
Architecture	Current Source
Operating temperature range (°C)	-40 to 85
Reference type	Int
