Описание

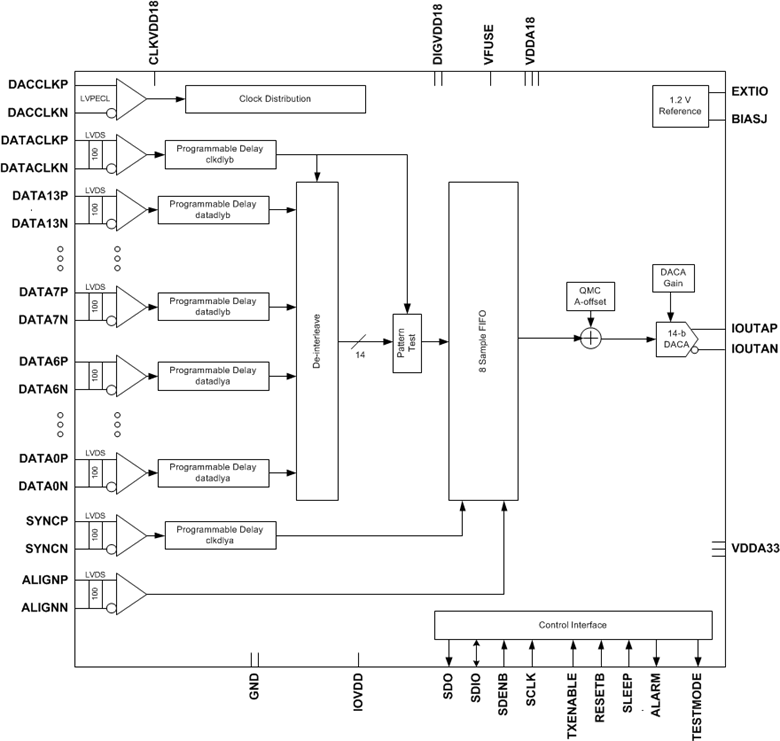

The DAC3151, DAC3161, and DAC3171 (DAC31x1) are a family of single-channel, 500-MSPS digital-to-analog converters (DACs). This family uses a 10-, 12-, or 14-bit wide LVDS digital bus with an input FIFO. The 14-bit DAC3171 also supports a DDR 7-bit LVDS interface mode. FIFO input and output pointers can be synchronized across multiple devices for precise signal synchronization. The DAC outputs are current sourcing, and terminate to GND with a compliance range of –0.5 V to +1 V. The DAC31x1 are pin compatible with the DAC31x4, dual-channel, 10-, 12-, and 14-bit, 500-MSPS digital-to-analog converters.The DAC31x1 are available in a VQFN-64 package that is specified over the full industrial temperature range (–40°C to +85°C).

Single Channel
Resolution
- DAC3151: 10-Bit
- DAC3161: 12-Bit
- DAC3171: 14-Bit
Maximum Sample Rate: 500 MSPS
Pin-Compatible Family
Input Interface:
- Parallel LVDS Inputs
- Single or Dual DDR Data Clock
- Internal FIFO
Chip to Chip Synchronization
Power Dissipation: 375 mW
Spectral Performance at 20 MHz IF
- SNR:
  - DAC3151: 62 dBFS
  - DAC3161: 72 dBFS
  - DAC3171: 76 dBFS
- SFDR:
  - DAC3151: 76 dBc
  - DAC3161: 77 dBc
  - DAC3171: 78 dBc
Current Sourcing DACs
Compliance Range: –0.5 V to +1 V
Package: 64-pin VQFN (9 mm × 9 mm)

Resolution (Bits)	14
Number of DAC channels	1
Interface type	DDR LVDS
Sample/update rate (Msps)	500
Features	Low Power
Rating	Catalog
Interpolation	1x
Power consumption (typ) (mW)	375
SFDR (dB)	82
Architecture	Current Source
Operating temperature range (°C)	-40 to 85
Reference type	Ext, Int
