Описание

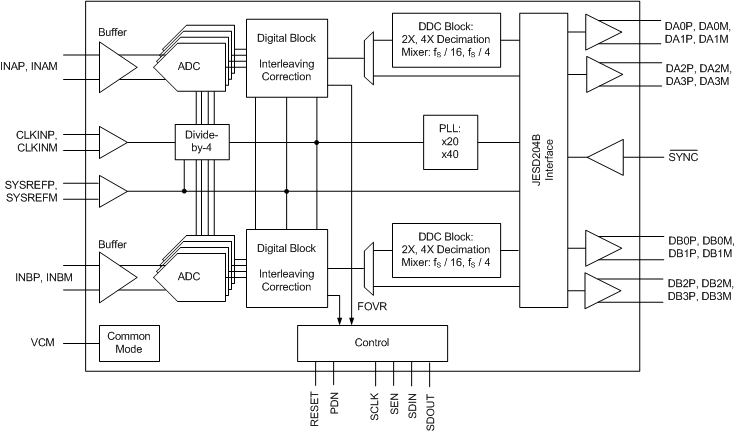

The ADS54J60 is a low-power, wide-bandwidth, 16-bit, 1.0-GSPS, dual-channel, analog-to-digital converter (ADC). Designed for high signal-to-noise ratio (SNR), the device delivers a noise floor of –159 dBFS/Hz for applications aiming for highest dynamic range over a wide instantaneous bandwidth. The device supports the JESD204B serial interface with data rates up to 10 Gbps, supporting two or four lanes per ADC. The buffered analog input provides uniform input impedance across a wide frequency range while minimizing sample-and-hold glitch energy. Each ADC channel optionally can be connected to a wideband digital down-converter (DDC) block. The ADS54J60 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption.The JESD204B interface reduces the number of interface lines, allowing high system integration density. An internal phase-locked loop (PLL) multiplies the ADC sampling clock to derive the bit clock that is used to serialize the 16-bit data from each channel.

16-bit resolution, dual-channel, 1-GSPS ADC
Noise floor: –159 dBFS/Hz
Spectral performance (f_IN = 170 MHz at –1 dBFS):
- SNR: 70 dBFS
- NSD: –157 dBFS/Hz
- SFDR: 86 dBc (including interleaving tones)
- SFDR: 89 dBc (except HD2, HD3, and interleaving tones)
Spectral performance (f_IN = 350 MHz at –1 dBFS):
- SNR: 67.5 dBFS
- NSD: –154.5 dBFS/Hz
- SFDR: 75 dBc
- SFDR: 85 dBc (except HD2, HD3, and interleaving tones)
Channel isolation: 100 dBc at f_IN = 170 MHz
Input full-scale: 1.9 V_PP
Input bandwidth (3 dB): 1.2 GHz
On-chip dither
Integrated wideband DDC block
JESD204B interface with subclass 1 support:
- 2 lanes per ADC at 10.0 Gbps
- 4 lanes per ADC at 5.0 Gbps
- Support for multi-chip synchronization
Power dissipation: 1.35 W/Ch at 1 GSPS
Package: 72-pin VQFNP (10 mm × 10 mm)

Sample rate (max) (Msps)	1000
Resolution (Bits)	16
Number of input channels	2
Interface type	JESD204B
Analog input BW (MHz)	1200
Features	Ultra High Speed
Rating	Catalog
Peak-to-peak input voltage range (V)	1.9
Power consumption (typ) (mW)	2700
Architecture	Pipeline
SNR (dB)	70.9
ENOB (Bits)	11.5
SFDR (dB)	90
Operating temperature range (°C)	-40 to 85
Input buffer	Yes
