Описание

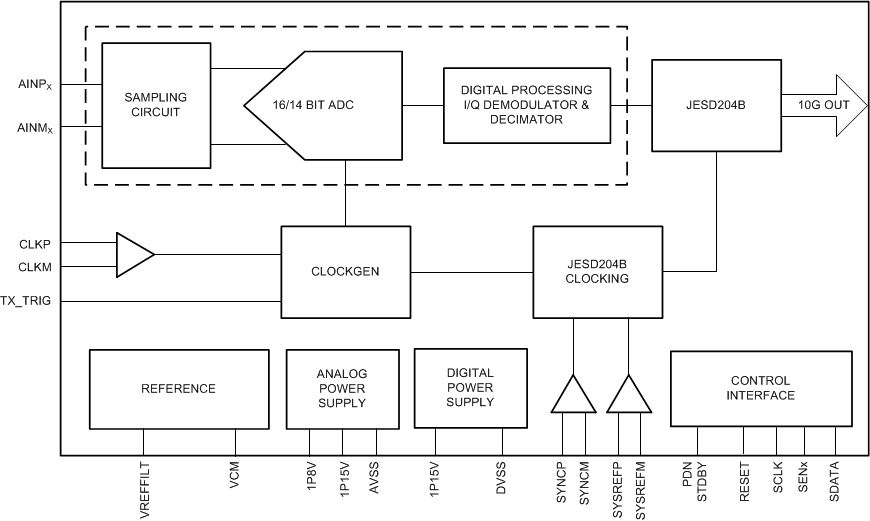

The 8-channel, 16-bit ADS52J65 analog-to-digital converter (ADC) uses CMOS process and innovative circuit techniques. It is designed to operate at low power and give very high signal-to-noise ratio (SNR) performance with a 2-Vpp full-scale input. The device gives 80-dBFS idle SNR and 78-dBFS full-scale SNR at 5 MHz. The large input bandwidth of 250 MHz makes the device suitable for a wide range of applications, such as high frequency medical ultrasound, magnetic resonance imaging, multi-channel data acquisition, flow cytometry, flow cytometer, and hematology analyzer. The ADC integrates an internal reference trimmed to match across devices. ADS52J65 has advanced digital features, including a digital I/Q demodulator with fractional decimation filter. The ADC data from each channel is encoded using an 8B to 10B format and is sent as a SerDes data stream using current-mode logic (CML) output buffers, as per the JESD204B standard. The ADC data from all eight channels can be output over a single CML buffer (1-lane SerDes) with the data rate limited to a maximum of 12.8 Gbps. Using SerDes outputs reduces the number of interface lines. This, together with the low-power design, enables eight channels to be packaged in a 9-mm × 9-mm VQFN allowing high system integration densities. ADS52J65 also supports modes where all ADC data is sent over four CML buffers (4-Lane SerDes), reducing the SerDes data rate per lane for low-cost FPGAs.The ADS52J65 is available in a non-magnetic VQFN package that does not create any magnetic artifact. The device is specified over –40°C to +85°C.

16-Bit Resolution, Idle SNR: 80 dBFS
70 mW/Ch at 125 MSPS, 4-CH per Lane
45 mW/Ch at 62.5 MSPS, 8-CH per Lane
Full-Scale Input: 2 V_PP
Full-Scale SNR: 78 dBFS at f_in = 10 MHz
Full-Scale SFDR: –85 dBc at f_in = 10 MHz
Analog Input –3 dB Bandwidth = 250 MHz
Maximum Input Signal Frequency for 2 V_PP Input = 130 MHz
Fast and Consistent Overload Recovery
Advanced Digital Features
- Automatic DC Offset Correction
- Digital Average
Digital I/Q Demodulator
- Fractional Decimation Filter M = 1 to 63 With Increments of 0.25
- Data Output Rate Reduction After Decimation
- 64 mW/Ch at 80 MSPS and Decimation = 2
- On-Chip RAM With 32 Preset Profiles
JESD204B Subclass 0, 1, and 2
- 2, 4, or 8 Channels per JESD Lane
- 10-Gbps JESD Interface
- Supports lane rate up to 12.8 Gbps for short trace length (< 5 Inch)
64-Pin Non-Magnetic 9 × 9-mm Package

Sample rate (max) (Msps)	125
Resolution (Bits)	16
Number of input channels	8
Interface type	JESD204B
Analog input BW (MHz)	250
Features	High Performance
Rating	Catalog
Peak-to-peak input voltage range (V)	2
Power consumption (typ) (mW)	560
Architecture	Pipeline
SNR (dB)	78
ENOB (Bits)	13
SFDR (dB)	85
Operating temperature range (°C)	-40 to 85
Input buffer	No
