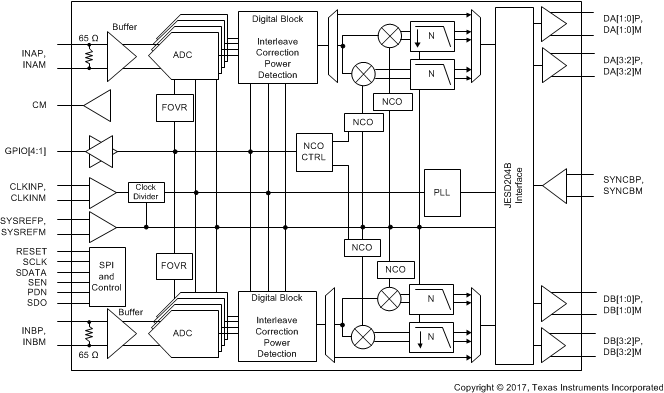

The ADC32RF44 device is a 14-bit, 2.6-GSPS, dual-channel, analog-to-digital converter (ADC) that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC32RF44 delivers a noise spectral density of –154.2 dBFS/Hz as well as dynamic range and channel isolation over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.Each ADC channel can be connected to a dual-band, digital down-converter (DDC) with up to three independent, 16-bit numerically-controlled oscillators (NCOs) per DDC for phase-coherent frequency hopping. Additionally, the ADC is equipped with front-end peak and RMS power detectors and alarm functions to support external automatic gain control (AGC) algorithms.The ADC32RF44 supports the JESD204B serial interface with subclass 1-based deterministic latency using data rates up to 12.5 Gbps with up to four lanes per ADC. The device is offered in a 72-pin VQFN package (10 mm × 10 mm) and supports the industrial temperature range (–40°C to +85°C).

14-Bit, Dual-Channel, 2.6-GSPS ADC
Noise Floor: –154.2 dBFS/Hz
RF Input Supports Up to 4.0 GHz
Aperture Jitter: 90 f_S
Channel Isolation: 95 dB at f_IN = 1.8 GHz
Spectral Performance (f_IN = 900 MHz, –2 dBFS):
- SNR: 61.2 dBFS
- SFDR: 65-dBc HD2, HD3
- SFDR: 79-dBc Worst Spur
Spectral Performance (f_IN = 1.85 GHz, –2 dBFS):
- SNR: 58.3 dBFS
- SFDR: 69-dBc HD2, HD3
- SFDR: 74-dBc Worst Spur
On-Chip Digital Down-Converters:
- Up to 4 DDCs (Dual-Band Mode)
- Up to 3 Independent NCOs per DDC
On-Chip Input Clamp for Overvoltage Protection
Programmable On-Chip Power Detectors with Alarm Pins for AGC Support
On-Chip Dither
On-Chip Input Termination
Input Full-Scale: 1.35 V_PP
Support for Multi-Chip Synchronization
JESD204B Interface:
- Subclass 1-Based Deterministic Latency
- 4 Lanes Per Channel at 12.5 Gbps
Power Dissipation: 2.95 W/Ch at 2.6 GSPS
72-Pin VQFN Package (10 mm × 10 mm)

Sample rate (max) (Msps)	2600
Resolution (Bits)	14
Number of input channels	2
Interface type	JESD204B
Analog input BW (MHz)	3200
Features	Ultra High Speed
Rating	Catalog
Peak-to-peak input voltage range (V)	1.35
Power consumption (typ) (mW)	5820
Architecture	Pipeline
SNR (dB)	63.1
ENOB (Bits)	10
SFDR (dB)	79
Operating temperature range (°C)	-40 to 85
Input buffer	Yes
