Описание

The TPA6138A2 is a pop-free stereo headphone amplifier designed to allow the removal of the output dc-blocking capacitors for reduced component count and cost. The device is ideal for single-supply electronics where size and cost are critical design parameters. Designed using TIs patented DirectPath™ technology, The TPA6138A2 is capable of driving 25 mW into a 32-Ω load with 3.3-V supply voltage. The device has differential inputs and uses external gain-setting resistors that supports a gain range of ±1 V/V to ±10 V/V. Gain can be configured individually for each channel. The device can also be configured as a second-order low-pass filter and is ideal for interfacing with PWM audio sources. Audio output compiles with ±8-kV IEC ESD protection, requiring just a simple resistor-capacitor ESD protection circuit. The TPA6138A2 has built-in active-mute control for pop-free audio on/off control. The TPA6138A2 has an external undervoltage detector that mutes the output when the power supply is removed, ensuring a pop-free shutdown. Using the TPA6138A2 in audio products can reduce component count considerably compared to traditional headphone amplifiers. The TPA6138A2 does not require a split-rail power supply or a dc blocking capacitor. The TPA6138A2 integrates its own charge pump to generate a negative supply rail that provides a clean, pop-free ground-biased audio signal. The TPA6138A2 is available in a 14-pin TSSOP.

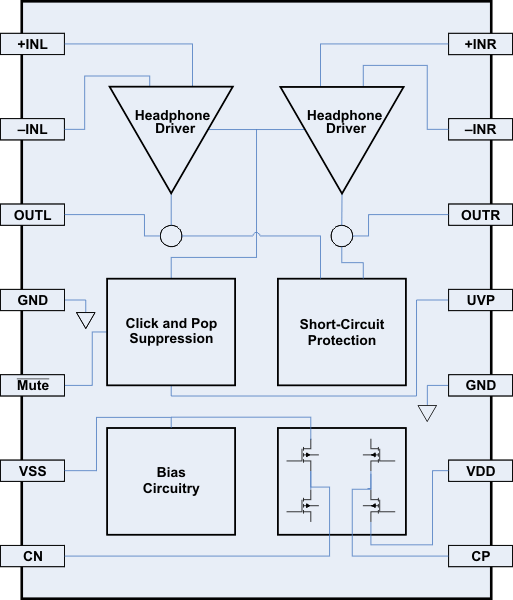

Stereo DirectPath™ Headphone Amplifier
- 40 mW Into 32 Ω With 3.3-V Supply
Low THD+N < 0.01% at 10 mW Into 32 Ω
High SNR, >90 dB
Differential Input and Single-Ended Output
Adjustable Gain by External Gain-Setting
Resistors
Configurable as a Second-Order Low-Pass Filter
- Ideal for PWM Audio Sources
Low DC Offset, <1 mV
Ground-Referenced Outputs Eliminate DC-
Blocking Capacitors
- Reduce Board Area
- Reduce Component Cost
- Improve THD+N Performance
- No Degradation of Low-Frequency Response
  Due to Output Capacitors
Short-Circuit Protection
Click- and Pop-Reduction Circuitry
External Undervoltage Mute
Active Mute Control for Pop-Free Audio On/Off
Control
Space-Saving TSSOP Package

Output power (W)	0.25
Analog supply (min) (V)	3
Analog supply (max) (V)	3.6
Load (min) (Ω)	32
PSRR (dB)	80
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Headphone channels	Stereo
Volume control	No
Shutdown current (ISD) (µA)	1
Architecture	Class-AB
Iq per channel (typ) (mA)	14
