Описание

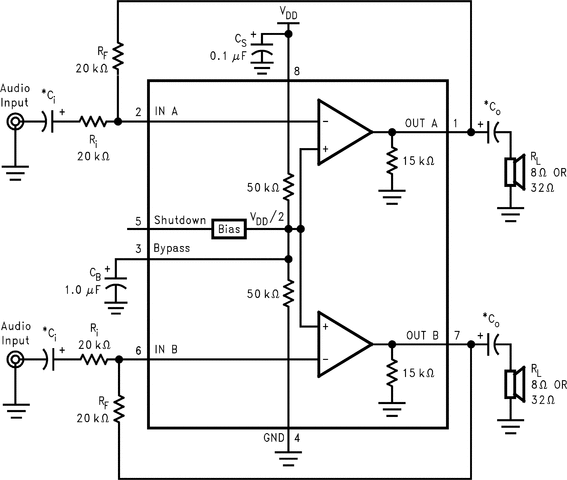

The LM4880 is a dual audio power amplifier capable of delivering typically 250mW per channel of continuous average power to an 8Ω load with 0.1% THD+N using a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components using surface mount packaging. Since the LM4880 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems. The LM4880 features an externally controlled, low-power consumption shutdown mode, as well as an internal thermal shutdown protection mechanism. The unity-gain stable LM4880 can be configured by external gain-setting resistors.

No Bootstrap Capacitors or Snubber Circuits are Necessary
Small Outline (SOIC) and PDIP Packaging
Unity-Gain Stable
External Gain Configuration Capability

Key Specifications

THD+N at 1kHz at 200mW Continuous Average Output Power into 8Ω: 0.1% (max)
THD+N at 1kHz at 85mW Continuous Average Output Power into 32Ω: 0.1% (typ)
Output Power at 10% THD+N at 1kHz into 8Ω 325 mW (typ)
Shutdown Current 0.7 µA (typ)
2.7V to 5.5V Supply Voltage Range

All trademarks are the property of their respective owners.

Output power (W)	0.11
Analog supply (min) (V)	2.7
Analog supply (max) (V)	5.5
Load (min) (Ω)	8
PSRR (dB)	50
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Headphone channels	Stereo
Volume control	No
Shutdown current (ISD) (µA)	0.7
Architecture	Class-AB
Iq per channel (typ) (mA)	1.8
