Описание

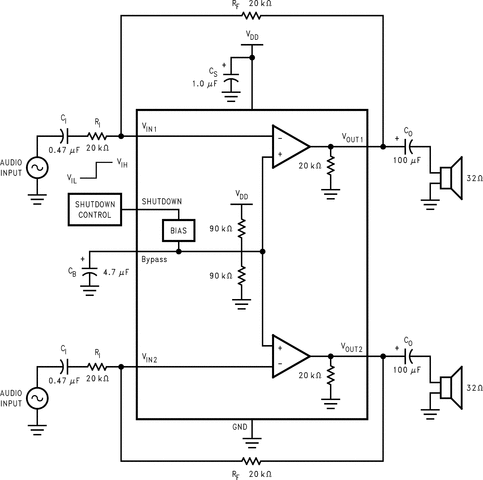

The LM4810 is a dual audio power amplifier capable of delivering 105mW per channel of continuous average power into a 16Ω load with 0.1% (THD+N) from a 5V power supply. Boomer audio power amplifiers were designed specifically to provide high quality output power with a minimal amount of external components. Since the LM4810 does not require bootstrap capacitors or snubber networks, it is optimally suited for low-power portable systems. The unity-gain stable LM4810 can be configured by external gain-setting resistors. The LM4810 features an externally controlled, active-high, micropower consumption shutdown mode, as well as an internal thermal shutdown protection mechanism.

Active-High Shutdown Mode
WSON, VSSOP, and SOIC Surface Mount Packaging
"Click and Pop" Suppression Circuitry
Low Shutdown Current
No Bootstrap Capacitors Required
Unity-Gain Stable

Key Specifications

THD+N at 1kHz, 105mW Continuous Average Power into 16Ω 0.1 % (typ)
THD+N at 1kHz, 70mW Continuous Average Power into 32Ω 0.1 % (typ)
Shutdown Current 0.4 µA (typ)

All trademarks are the property of their respective owners.

Output power (W)	0.105
Analog supply (min) (V)	2
Analog supply (max) (V)	5.5
Load (min) (Ω)	16
PSRR (dB)	70
Rating	Catalog
Operating temperature range (°C)	-40 to 85
Headphone channels	Stereo
Volume control	No
Shutdown current (ISD) (µA)	0.4
Architecture	Class-AB
Iq per channel (typ) (mA)	0.65
