Описание

The SN65DSI83 DSI to FlatLink bridge device features a single-channel MIPI D-PHY receiver front-end configuration with four lanes per channel operating at 1 Gbps per lane; a maximum input bandwidth of 4 Gbps. The bridge decodes MIPI DSI 18 bpp RGB666 and 24 bpp RGB888 packets and converts the formatted video data stream to a FlatLink-compatible LVDS output operating at pixel clocks operating from 25 MHz to 154 MHz, offering a Single-Link LVDS with four data lanes per link.The SN65DSI83 device can support up to WUXGA 1920 × 1200 at 60 frames per second, at 24 bpp with reduced blanking. The SN65DSI83 device is also suitable for applications using 60 fps 1366 × 768 / 1280 × 800 at 18 bpp and 24 bpp. Partial line buffering is implemented to accommodate the data stream mismatch between the DSI and LVDS interfaces.Designed with industry-compliant interface technology, the SN65DSI83 device is compatible with a wide range of microprocessors, and is designed with a range of power management features including low-swing LVDS outputs, and the MIPI defined ultra-low power state (ULPS) support.The SN65DSI83 device is implemented in a small outline 5-mm × 5-mm nFBGA at 0.5-mm pitch package, and operates across a temperature range from –40°C to 85°C.

Implements MIPI D-PHY version 1.00.00 physical layer front-end and display serial interface (DSI) version 1.02.00
Single channel DSI receiver configurable for 1, 2, 3, or 4 D-PHY data lanes per channel operating up to 1 Gbps/lane
Supports 18 bpp and 24 bpp DSI video packets with RGB666 and RGB888 formats
Max resolution up to 60 fps WUXGA 1920 × 1200 at 18 bpp and 24 bpp color with reduced blanking. suitable for 60 fps 1366 × 768 / 1280 × 800 at 18 bpp and 24 bpp
FlatLink™ output for single-link LVDS
Supports single channel DSI to single-link LVDS operating mode
LVDS Output Clock Range of 25 MHz to 154 MHz
LVDS pixel clock may be sourced from free-running continuous D-PHY clock or external reference clock (REFCLK)
1.8-V main V_CC power supply
Low power features include shutdown mode, reduced LVDS output voltage swing, common mode, and MIPI ultra-low power state (ULPS) support
LVDS channel swap, LVDS PIN order reverse feature for ease of PCB routing
ESD rating ±2 kV (HBM)

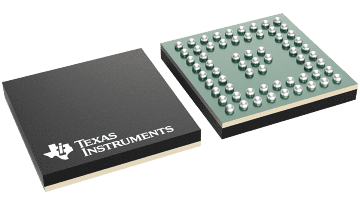

Packaged in 64-pin 5-mm × 5-mm nFBGA (ZXH)
Temperature range: –40°C to 85°C

Type	Bridge
Protocols	LVDS, MIPI DSI
Rating	Catalog
Speed (max) (Gbps)	4
Supply voltage (V)	1.8
Operating temperature range (°C)	-40 to 85
